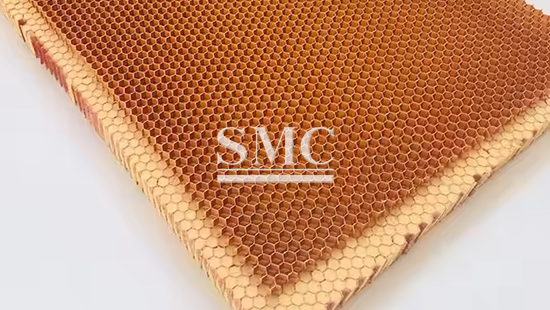

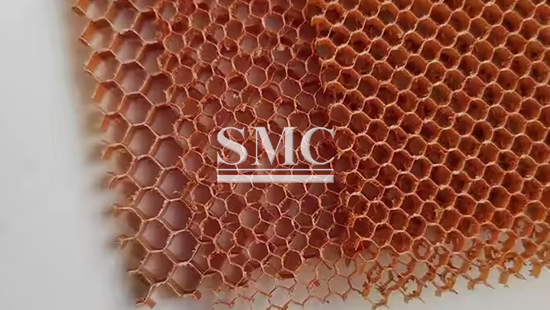

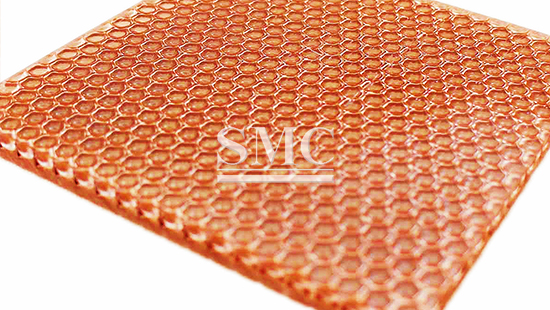

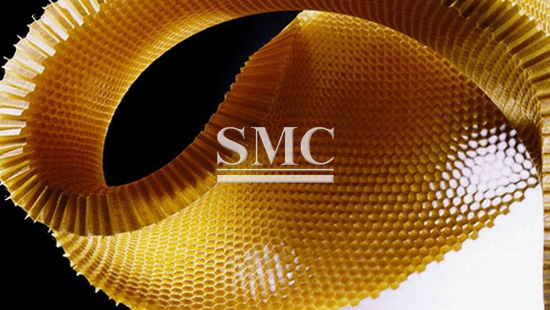

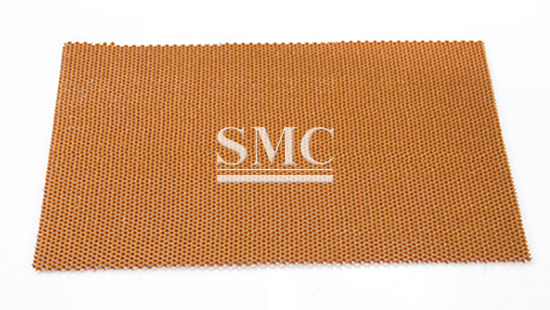

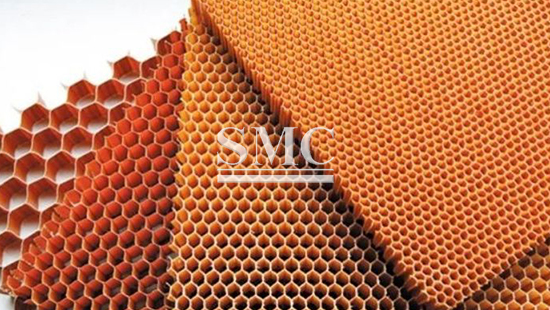

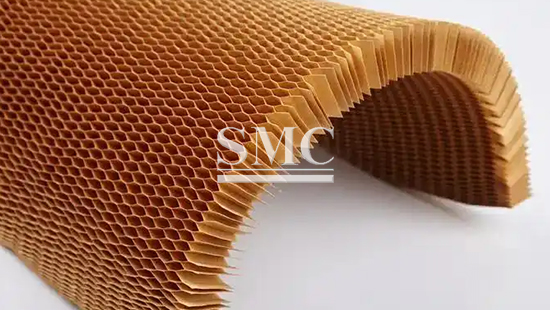

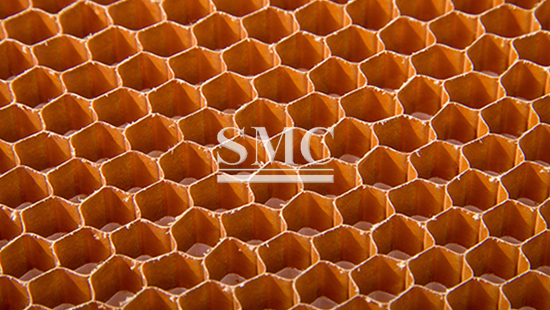

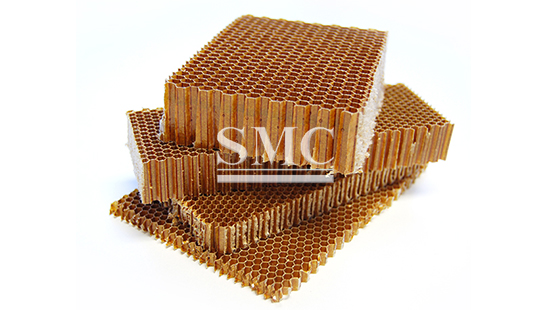

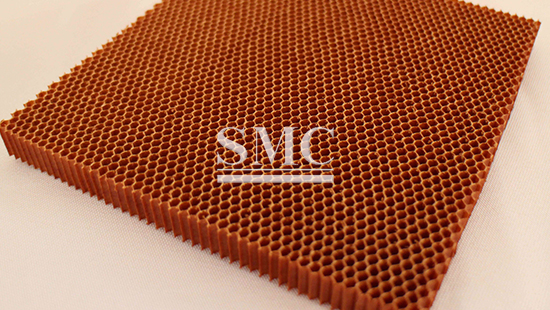

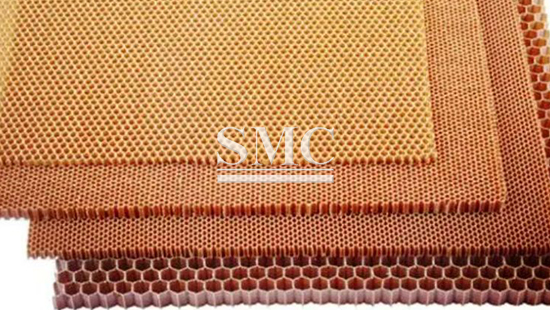

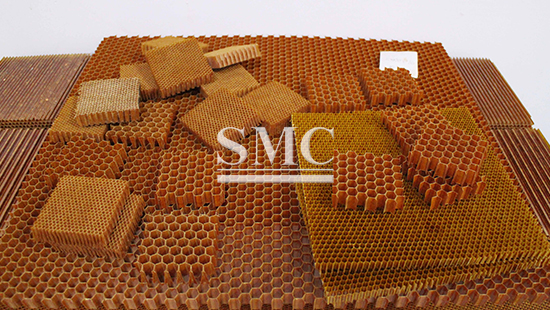

Nomex / Aramid Honeycomb Core
Cell size: 1/8”, 5/23”, 3/16”, 1/4”, 1”, etc.
Material: Nomex paper
Total thickness：≥1mm
Width and Length: customized
Shanghai Metal Corporation is a leading Nomex / Aramid Honeycomb Core manufacturer and supplier.
Aramid honeycomb core is made of aramid paper processed and impregnated with flame-retardant phenolic resin. It has light weight, high strength, excellent environmental resistance, corrosion resistance, resilience, vibration absorption, good electromagnetic wave permeability and high stability. It is widely used in aerospace, rail transportation, ships and yachts, shelters, sports goods, etc.
If you want to know more about our Nomex / Aramid Honeycomb Core price or other honeycomb panel price please feel free to contact us, we will reply you within 24 hours.
|
Cell size |
Density (kg/ m3) |
Compression strength |
L-Shear strength |
W-Shear strength |
|
|
（mm） |
(MPa) |
(Mpa/mm2) |
(Mpa/mm2) |
||
|
3.2 |
1/8 inch |
48 |
1.91 |
1.16 |
0.62 |
|
3.2 |
64 |
3.14 |
1.48 |
0.82 |
|
|
3.2 |
80 |
4.73 |
1.95 |
1.05 |
|
|
3.2 |
96 |
6.62 |
2.45 |
1.42 |
|
|
3.2 |
128 |
11.34 |
2.95 |
1.78 |
|
|
3.2 |
144 |
13.2 |
3.05 |
1.92 |
|
|
4 |
5/23 inch |
29 |
0.65 |
0.45 |
0.26 |
|
4 |
80 |
5.1 |
1.91 |
0.98 |
|
|
4 |
144 |
13 |
3.64 |
2.01 |
|
|
4.8 |
3/16 inch |
32 |
0.91 |
0.58 |
0.36 |
|
4.8 |
48 |
2.63 |
0.98 |
0.56 |
|
|
4.8 |
64 |
3.41 |
1.73 |
0.92 |
|
|
4.8 |
80 |
6 |
1.95 |
1.17 |
|
|
4.8 |
96 |
7.32 |
2.26 |
1.32 |
|
|
4.8 |
123 |
9.37 |
3.42 |
1.86 |
|
|
6.4 |
1/4 inch |
24 |
0.54 |
0.34 |
0.18 |
|
6.4 |
32 |
0.8 |
0.54 |
0.31 |
|
|
6.4 |
48 |
2.05 |
1.01 |
0.56 |
|
|
6.4 |
64 |
3.43 |
1.54 |
0.79 |
|
Packaging of Nomex / Aramid Honeycomb Core
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
