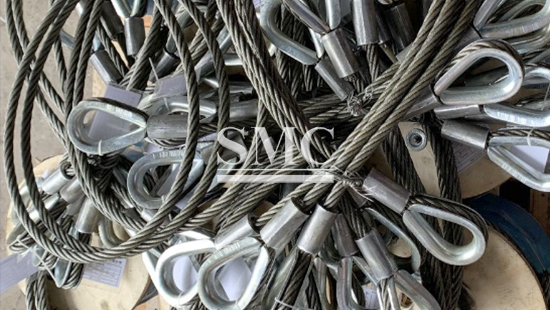

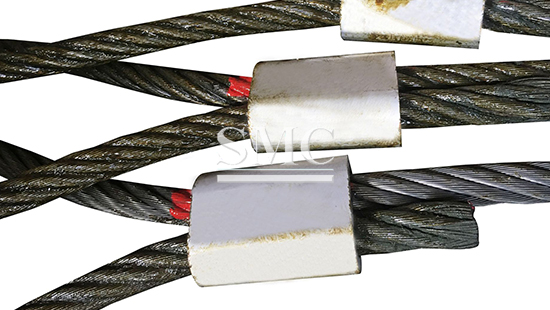

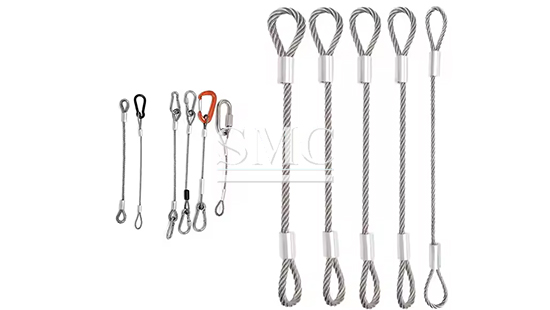

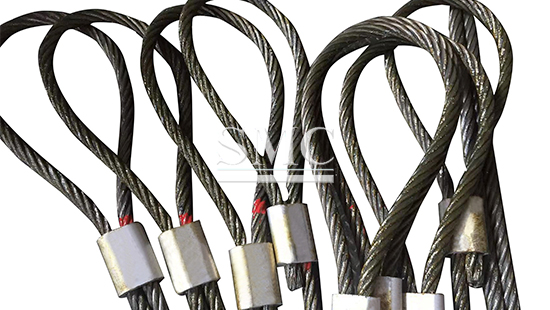

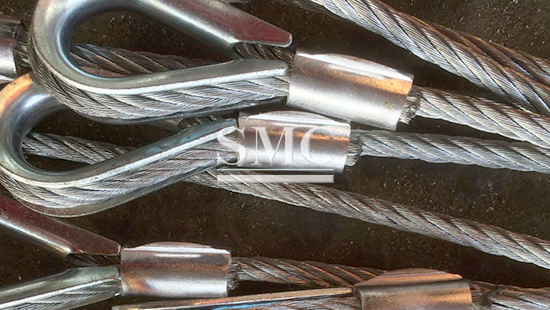

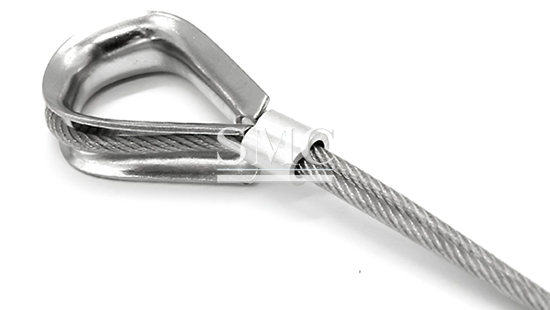

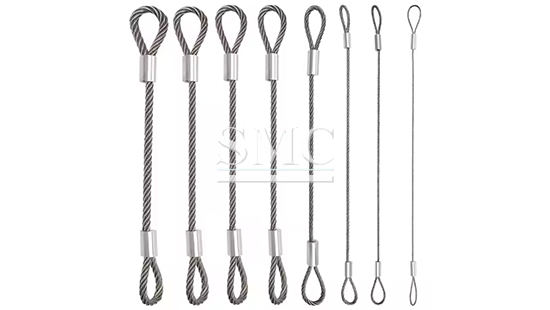

Pressed Steel Wire Rope Sling
Diameter: 6mm~120mm
Material: Galvanized steel, SS304
Structure: 6*19+FC/IWRC, 6*37+FC/IWRC, 8*61+FC/IWRC
Shanghai Metal Corporation is experienced manufacturer of pressed steel wire rope sling in China since 1980s.
Pressed steel wire rope sling is made from steel wire rope as raw material and processed by a steel wire rope pressing machine. The rope mainly used for lifting, traction, tension, and load-bearing is called a pressed steel wire rope sling. Pressed steel wire rope sling has the characteristics of high strength, light weight, stable operation, and is not easy to suddenly break the entire piece. It is widely used in industries such as steel, chemical, transportation, ports and construction.
If you want to know more about pressed steel wire rope sling price, please feel free to contact us, we will reply you within 24 hours.

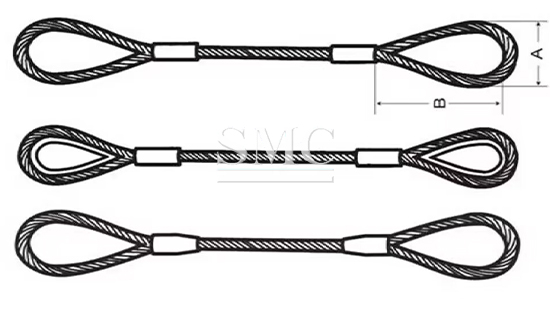

Technical Information of Pressed Steel Wire Rope Sling:
|
Sizes&Types |
Diameter |
Size(mm) |
Breaking load |
|||||||
|
Standard |
Ring type with sleeve |
mm |
Standard |
Ring type with sleeve |
T |
|||||
|
FC |
IWRC |
FC |
IWRC |
D |
A |
B |
A |
B |
FC |
IWRC |
|
- |
I03 |
- |
CW03 |
3 |
45 |
90 |
11.5 |
19 |
- |
0.13 |
|
- |
I05 |
- |
CW05 |
5 |
75 |
150 |
13 |
20.5 |
- |
0.34 |
|
F06 |
I06 |
CF06 |
CW06 |
6 |
90 |
180 |
15 |
24 |
0.35 |
0.37 |
|
F08 |
I08 |
CF08 |
CW08 |
8 |
105 |
210 |
20 |
35 |
0.61 |
0.66 |
|
F09 |
I09 |
CF09 |
CW09 |
9 |
115 |
230 |
24 |
39 |
0.78 |
0.84 |
|
F10 |
I10 |
CF10 |
CW10 |
10 |
115 |
230 |
24 |
39 |
0.96 |
1.04 |
|
F11 |
I11 |
CF11 |
CW11 |
11 |
125 |
250 |
28.5 |
44 |
1.16 |
1.25 |
|
F12 |
I12 |
CF12 |
CW12 |
12 |
130 |
260 |
28.5 |
44 |
1.38 |
1.49 |
|
F13 |
I13 |
CF13 |
CW13 |
13 |
130 |
260 |
30 |
50 |
1.62 |
1.75 |
|
F14 |
I14 |
CF14 |
CW14 |
14 |
140 |
280 |
32 |
50 |
1.87 |
2.04 |
|
F16 |
I16 |
CF16 |
CW16 |
16 |
160 |
320 |
38 |
58 |
2.46 |
2.66 |
|
F18 |
I18 |
CF18 |
CW18 |
18 |
180 |
360 |
40 |
63 |
3.1 |
3.36 |
|
F20 |
I20 |
CF20 |
CW20 |
20 |
200 |
400 |
45 |
71 |
3.84 |
4.15 |
|
F22 |
I22 |
CF22 |
CW22 |
22 |
220 |
440 |
50 |
78 |
4.65 |
5.01 |
|
F24 |
I24 |
CF24 |
CW24 |
24 |
240 |
480 |
56 |
91 |
5.53 |
5.97 |
|
F26 |
I26 |
CF26 |
CW26 |
26 |
260 |
520 |
62 |
97 |
6.48 |
7.02 |
|
F28 |
I28 |
CF28 |
CW28 |
28 |
280 |
560 |
70 |
114 |
7.51 |
8.14 |
|
F30 |
I30 |
CF30 |
CW30 |
30 |
300 |
600 |
75 |
122 |
8.63 |
9.33 |
|
F32 |
I32 |
CF32 |
CW32 |
32 |
320 |
640 |
79.5 |
130 |
9.83 |
10.62 |
|
F36 |
I36 |
CF36 |
CW36 |
36 |
360 |
720 |
95 |
164 |
12.43 |
13.44 |
|
F40 |
I40 |
CF40 |
CW40 |
40 |
400 |
800 |
117 |
190 |
15.34 |
16.59 |
|
F44 |
I44 |
CF44 |
CW44 |
44 |
440 |
880 |
135 |
250 |
18.55 |
20.02 |
|
F48 |
I48 |
CF48 |
CW48 |
48 |
480 |
960 |
135 |
260 |
22.04 |
23.88 |
|
F52 |
I52 |
CF52 |
CW52 |
52 |
520 |
1040 |
150 |
270 |
25.9 |
28.1 |
|
F56 |
I56 |
CF56 |
CW56 |
56 |
560 |
1120 |
150 |
270 |
30.12 |
32.51 |
|
F60 |
I60 |
CF60 |
CW60 |
60 |
600 |
1200 |
150 |
300 |
34.53 |
37.29 |
|
F62 |
I62 |
-- |
-- |
62 |
620 |
1240 |
|
|
29.59 |
35 |
|
F64 |
I64 |
-- |
-- |
64 |
640 |
1280 |
|
|
31.53 |
37.24 |
|
F66 |
I66 |
-- |
-- |
66 |
660 |
1320 |
|
|
33.57 |
39.69 |
|
F68 |
I68 |
-- |
-- |
68 |
680 |
1360 |
|
|
35.61 |
42.14 |
|
F70 |
I70 |
-- |
-- |
70 |
700 |
1400 |
|
|
37.76 |
44.59 |
|
F72 |
I72 |
-- |
-- |
72 |
720 |
1440 |
|
|
39.9 |
47.24 |
|
F74 |
I74 |
-- |
-- |
74 |
740 |
1480 |
|
|
42.14 |
49.9 |
|
F76 |
I76 |
-- |
-- |
76 |
760 |
1520 |
|
|
44.49 |
52.65 |
|
F78 |
I78 |
-- |
-- |
78 |
780 |
1560 |
|
|
46.84 |
55.41 |
|
F80 |
I80 |
-- |
-- |
80 |
800 |
1600 |
|
|
49.29 |
58.27 |
|
F82 |
I82 |
-- |
-- |
82 |
820 |
1640 |
|
|
51.73 |
61.22 |
|
F84 |
I84 |
-- |
-- |
84 |
840 |
1680 |
|
|
54.29 |
64.29 |
|
F86 |
I86 |
-- |
-- |
86 |
860 |
1720 |
|
|
56.94 |
67.35 |
|
F88 |
I88 |
-- |
-- |
88 |
880 |
1760 |
|
|
59.59 |
70.51 |
|
F90 |
I90 |
-- |
-- |
90 |
900 |
1800 |
|
|
62.35 |
73.78 |
|
F92 |
I92 |
-- |
-- |
92 |
920 |
1840 |
|
|
65.2 |
77.14 |
|
F94 |
I94 |
-- |
-- |
94 |
940 |
1880 |
|
|
68.06 |
80.51 |
|
F96 |
I96 |
-- |
-- |
96 |
960 |
1920 |
|
|
70.92 |
83.98 |
|
F98 |
I98 |
-- |
-- |
98 |
980 |
1960 |
|
|
73.98 |
87.45 |
|
F100 |
I100 |
-- |
-- |
100 |
1000 |
2000 |
|
|
77.04 |
91.12 |
|
F102 |
I102 |
-- |
-- |
102 |
1020 |
2040 |
|
|
80.1 |
94.8 |
|
F104 |
I104 |
-- |
-- |
104 |
1040 |
2080 |
|
|
83.27 |
98.57 |
|
F106 |
I106 |
-- |
-- |
106 |
1060 |
2120 |
|
|
86.53 |
102.35 |
|
F108 |
I108 |
-- |
-- |
108 |
1080 |
2160 |
|
|
89.8 |
106.22 |
Packaging of Pressed Steel Wire Rope Sling:
Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
