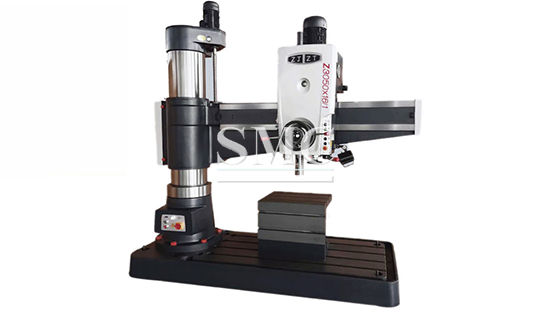

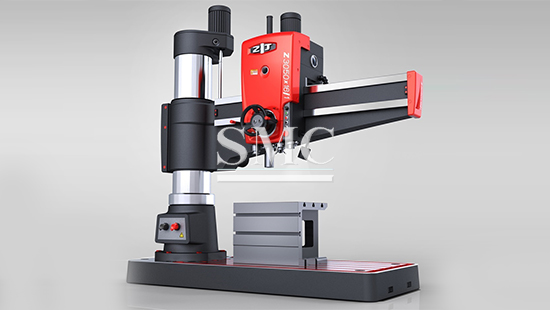

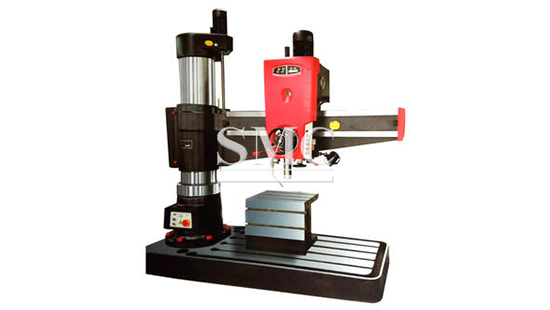

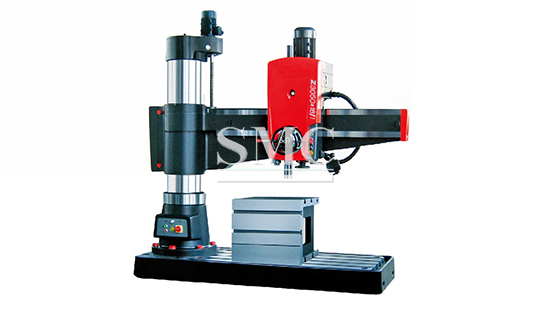

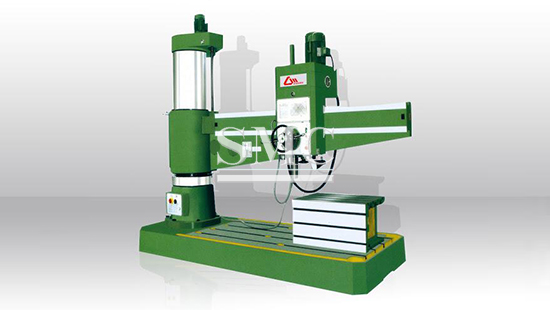

Radial Drilling
Hydraulic Type: Z3080; Z3063; Z305
Mechanical Type: Z3040; Z3032; Z3045 (Electronic Locking Function)
Shanghai Metal Corporation is a leading Radial Drilling manufacturer and supplier.
All controls of our Radial Drilling centralized on the head stock easy operation and change.Clamping for assemblies and speed change of spindle achiered by hydrandic power,cmle is sensitne owet nelile.
If you want to know more about our Radial Drilling, please feel free to contact us, we will reply you within 24 hours.
Technical Information of Radial Drilling:
|
Model |
Z3040X16/1 |
|
Z3050X16/1 |
|
|
ZQ3050X20/1 |
|
|
Max.drilling capacity (mm) |
40，50，50， |
|
Distance spindle axis to column generating line (mm) |
350-1600，350-1600, 350-2000 |
|
Diameter of column (mm) |
350 |
|
Spindle taper |
MT4，MT5，MT5 |
|
Spindle travel (mm) |
315 |
|
Spindle speeds range (r/min) |
25-2000 |
|
Spindle speeds series |
16 |
|
Range of Spindle feeds (mm/r) |
0.04-3.2 |
|
Mpindle Spindle feeds |
16 |
|
Distance spindle nose to working surface of base (mm) |
350-1250，320-1220，320-1220 |
|
Dimension of worktable (mm) |
630X500X500 |
|
Dimension of base (mm) |
2400X1000X200 |
|
Overall size (mm) |
2500X1060X2650 |
|
2500X1060X2650 |
|
|
2900X1060X2650 |
|
|
Power of Main motor (kw) |
3，4，4 |
|
G.W/NW (kg) |
3650/3400，3650/3400，3850/3550 |
|
Packing dimension (cm) |
260X112X260 |
|
260X112X260 |
|
|
300X112X260 |
Packaging of Radial Drilling:
