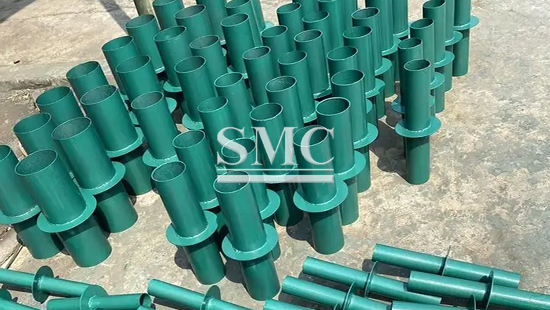

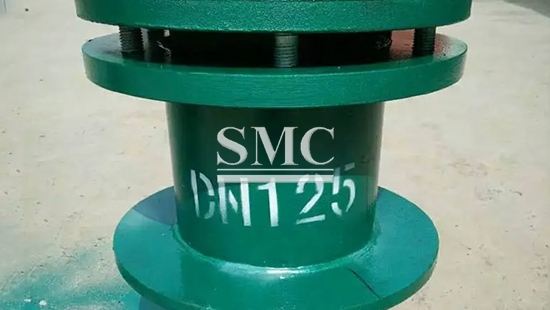

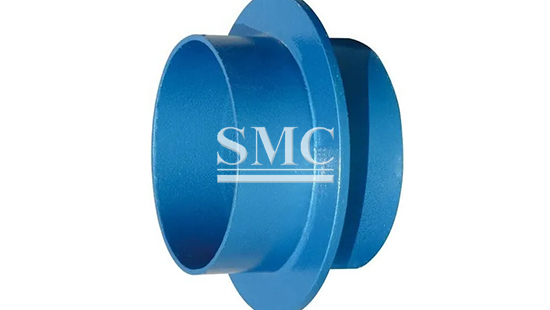

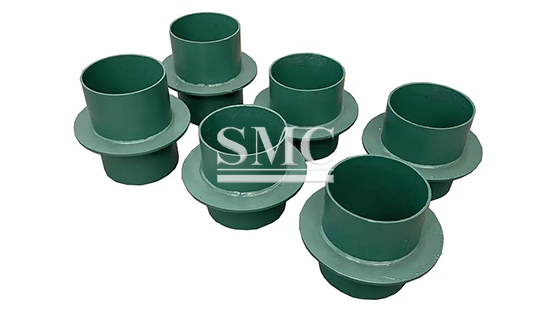

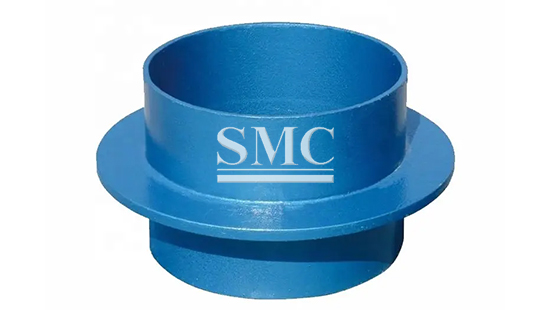

Rigid Waterproof Sleeve
Size: DN50-DN1000
Material: Carbon steel
Standard length: 200mm
Shanghai Metal Corporation is a professional manufacturer and supplier of rigid waterproof sleeve with high quality and reasonable price.

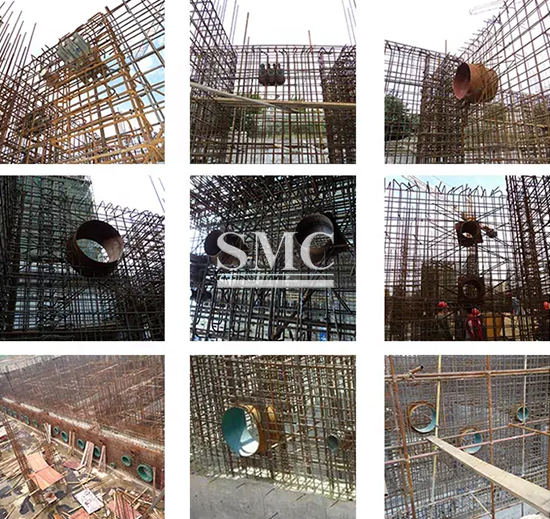

Rigid waterproofing casing is a steel tube with wing ring (made of steel ring set on the steel pipe), installed in the wall (mostly concrete wall), used for general pipeline wall, wall waterproof, and flexible waterproof casing in addition to the outer ring, internal gear ring, such as the flanges silk, has a complete set of sell, also can own processing, used to have a shock to line, such as pump and connecting pipe wall.
If you want to know more about our metal products or rigid waterproof sleeve price please feel free to contact us, we will reply you within 24 hours.
Technical Information of Rigid Waterproof Sleeve:
|
NO |
Name |
Quantity |
Material |
|
1 |
Steel Sleeve |
1 |
Q235-A |
|
2 |
Wing Ring |
1 |
Q235-A |
|
3 |
Retainer Ring |
1 |
Q235-A |
|
Type II casing size table |
|||||||||||||||||
|
Dg |
50 |
75 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
700 |
800 |
900 |
1000 |
|
D1 |
60 |
93 |
118 |
143 |
169 |
220 |
271.6 |
322.8 |
374 |
425.6 |
476.8 |
528 |
630.8 |
733 |
836 |
939 |
1041 |
|
D2 |
114 |
140 |
168 |
194 |
219 |
273 |
325 |
377 |
426 |
480 |
530 |
579 |
681 |
783 |
886 |
991 |
1093 |
|
D3 |
115 |
141 |
169 |
195 |
220 |
274 |
326 |
378 |
427 |
481 |
531 |
580 |
682 |
784 |
887 |
992 |
1094 |
|
D4 |
225 |
251 |
289 |
315 |
340 |
394 |
446 |
498 |
567 |
621 |
671 |
720 |
810 |
924 |
1027 |
1132 |
1234 |
|
δ |
4 |
4.5 |
5 |
6 |
7 |
8 |
9 |
9 |
9 |
9 |
9 |
9 |
9 |
9 |
9 |
9 |
9 |
|
b |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
|
h |
4 |
4 |
5 |
5 |
6 |
7 |
8 |
9 |
9 |
9 |
9 |
9 |
9 |
9 |
9 |
9 |
9 |
|
Weight |
4.48 |
5.67 |
7.41 |
8.43 |
10.44 |
14.13 |
18.22 |
26.06 |
31.38 |
35.17 |
38.68 |
42.14 |
49.31 |
56.47 |
63.71 |
71.10 |
70.21 |

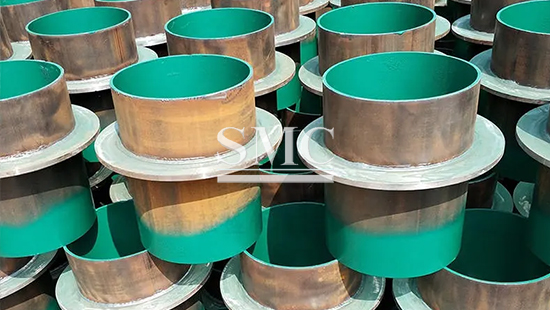

Packaging of Rigid Waterproof Sleeve:
Wooden box, carton cases, straw stringor plastic string are usually used to pack the product.
Twenty wooden cases whose specification is 1m*1m*1m can be loaded in one container.
