Support Rings and Guide Rings

Grade: ZX-10, ZX-20, ZX-30, ZX-32, ZX-50, ZX-60, ZX-70, ZX-80

Material: Thermosetting resin, Polyester fabric, Self Lubricant, Phenolic resin, Cotton fabric

Product Detail | Technical Information | Packaging

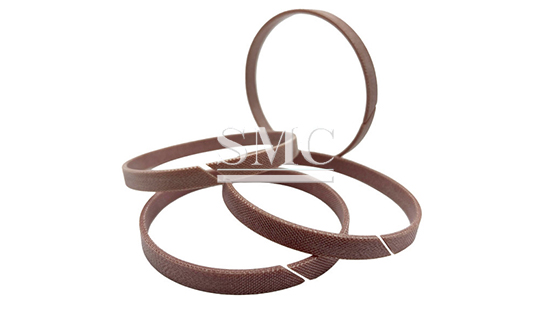

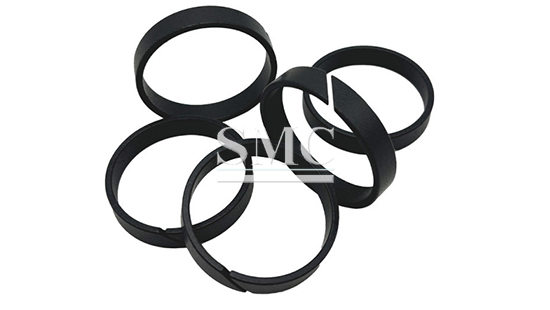

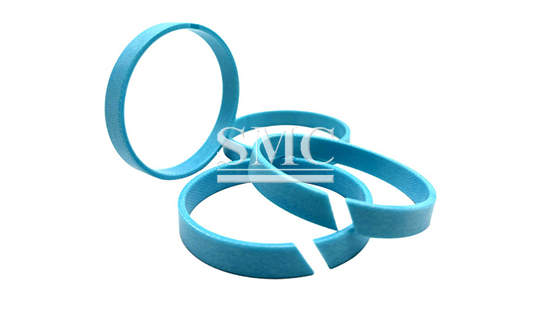

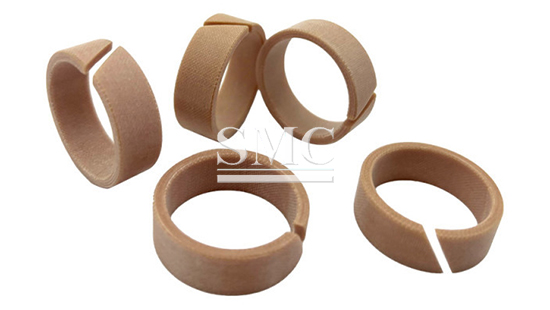

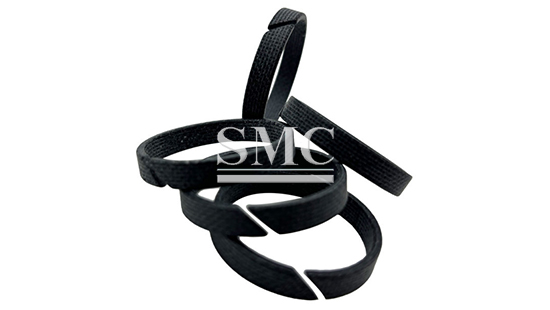

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Support Rings and Guide Rings with high quality and reasonable price.

The support ring and guide ring are high-strength composite materials synthesized through advanced processes with high-strength special synthetic fiber cloth as the reinforcing material, reinforced polyester modified resin as the substrate, and self-lubricating materials added under certain stability and pressure.

This material has excellent dimensional stability, excellent wear resistance, and outstanding advantages in working in low or no oil conditions. Excellent self-lubricating properties and high load capacity. It has a very low friction coefficient in dry state, which can effectively reduce vibration and crawling, and is suitable for complex working environments.

If you want to know more about Support Rings and Guide Rings price please feel free to contact us, we will reply you within 24 hours

Excellent corrosion resistance performance
Excellent high temperature resistance
Excellent wear resistance
Excellent dimensional stability
High load capacity

Light hydraulic cylinder guide ring and support ring
Construction vehicle swing bridge bracket liner, thrust washer
Hydraulic mechanical column conduit
Tunnel construction shield machine
Water conservancy and wind power equipment components
Small excavators, mining trucks, and coal mining equipment

Technical Information of Support Rings and Guide Rings:

Material Grade	Composites Structure
ZX-10	Phenolic resin+Cotton fabric
ZX-20	Phenolic resin+Cotton fabric+Graphite
ZX-30	Thermosetting resin+Polyester fabric+Graphite
ZX-32	Phenolic resin+Polyester fabric
ZX-50	Thermosetting resin+Polyester fabric+PTFE
ZX-60	Thermosetting resin+Polyester fabric+PTFE
ZX-70	Thermosetting resin+Polyester fabric+Self Lubricant
ZX-80	Thermosetting resin+High-temperature-resistant polyester fabric+MoS2

Material Grade	Color	Density g/cm³	Tensile Strength MPa	Ultimate Compressive Strength Mpa	Bending Strength Mpa	Rockwell Hardness HRM	Coefficient Friction		Temperature °C
Material Grade	Color	Density g/cm³	Tensile Strength MPa	Ultimate Compressive Strength Mpa	Bending Strength Mpa	Rockwell Hardness HRM	Dry	Oil	Temperature °C
ZX-10	Light Yellow to Browm	1.2-1.4	50.5	298	98	108	0.12-0.18	0.05-0.12	-55~+130
ZX-20	Grey	1.2-1.4	107	295	127	103	0.10-0.16	0.03-0.10	-55~+130
ZX-30	Black	1.2-1.4	83	405	120	94	0.10-0.16	0.03-0.10	-55~+130
ZX-32	Light Yellow to Browm	1.2-1.4	72.5	350	125	94	0.12-0.18	0.05-0.12	-55~+130
ZX-50	Light Yellow to Browm	1.2-1.4	62.3	413	131	109	0.12-0.18	0.05-0.12	-55~+130
ZX-60	Blue to Green	1.2-1.4	60	355	115	98	0.12-0.18	0.05-0.12	-55~+130
ZX-70	White	1.2-1.4	132.8	408.8	159.6	92	0.12-0.18	0.05-0.12	-55~+130
ZX-80	Black	1.2-1.4	80	530	130	110	0.10-0.16	0.03-0.10	-55~+200

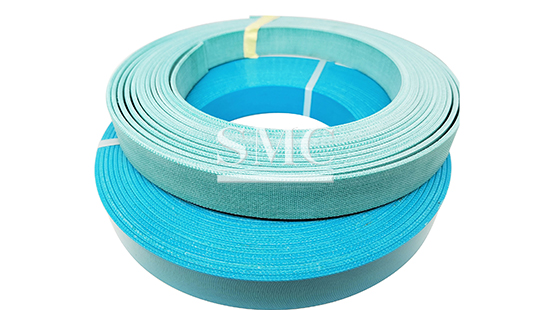

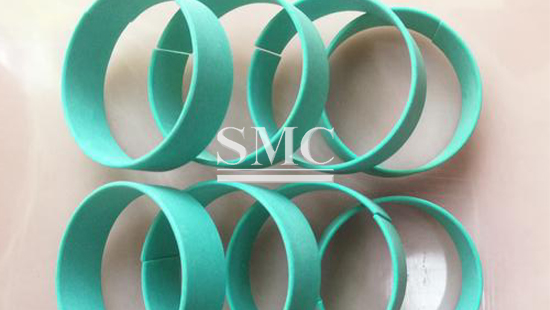

Packaging of Support Rings and Guide Rings:

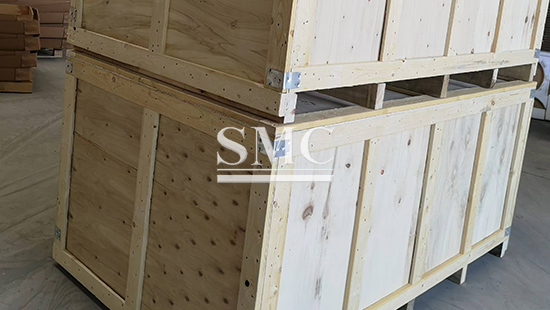

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
