Feature: Wind and waterproof

Size: 20ft/ 40ft

Type: T4,T6,T11etc

Material: AISI 316 and other grades of stainless stee

Product Detail | Technical Information

Product Detail

Shanghai Metal Corporation is a leading ISO tank container (20ft/ 40ft) manufacturer and supplier.

The container is a kind of tool that can be used for any transportation and easy to be handled by hand. The greatest success of a container lies in the standardization of its products and the whole set of transportation systems.

If you want to know more about our container products or ISO tank container (20ft/ 40ft) price please feel free to contact us, we will reply you within 24 hours.

Reliability: ISO Tank Containers are internationally approved and certified to ISO standards, ensuring that they meet global safety standards. They are inspected before and after each use and are tested by international safety verification companies every 2.5 years.

Efficient: ISO Tank Containers have carrying capacity of over 24,000 litres, which is a significant improvement over traditional bulk liquid transport of drums in standard containers which has a carrying capacity of only 15,000 litres.

Cost Effective: Due to their intermodal design, ISO Tank Containers can be easily transferred across rail, road and shipping and as such the cost of both shipping and handling is significantly reduced.

Sustainable: ISO Tank Containers are built to last and have an estimated useful life of 15-20 years. This means that they can be reused numerous times and reduces costly environmental packaging waste such as drums and plastic containers which are no re-usable.

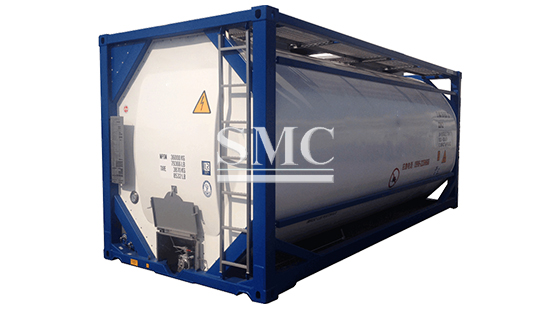

T11 FRAME TANK

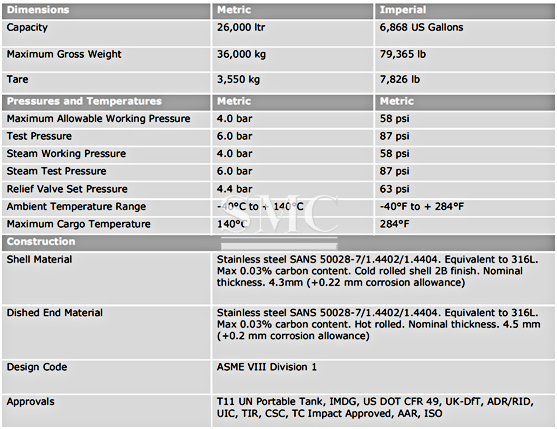

General specification
Dimension	6058mm×2438mm×2591mm ( 20’×8’×8’6” )
Frame material	High tensile steel suitable for sub zero temperatures
Tank material	AISI 316 and other grades of stainless steel
Maxing gross weight	Up to 36000kg / 79366lb
Stacking	86400kg / 190477 lb per post
Capacities	14000L / 3699 US gal to 26000L / 6869 US gal
Working pressure	4 bar / 58 psi
Test pressure	6 bar / 87psi
Add: with or without insulation and steam heating
Fittings
Manhole	500mm(20”) with 6 or 8 swing bolts Gasket in PTFE braided fiber or sweet white rubber
Venting	65mm (2 ½') relief valve, with or without bursting disc
Air Line	40mm(1 ½')with valve
Bottom Discharge	80mm(3') internal foot valve with remote control, butterfly or ball valve and blind flange or blank cap
Top Discharge	80mm(3') provision only or syphon tube, butterfly valve and blind flange or blank cap
Spill trays	With overflow pipes, with or without lids
Steam heating	Heating areas up to 12㎡. Working pressure:7 bar
Insulation	50mm(2') combination of rook wool and polyurethane with aluminum, stainless steel or GRP cladding
Top access	Ladder at rear end, aluminum walkway to top accessories
Approvals	CSC,RID/ADR,UIC,TIR,DOT(USA),IMDG,TG,AAR
CUSTOMERS SPECIFIC REQUIREMENTS CAN BE ACCOMMODATED ON REQUEST
