Grade: Gr1, Gr2, Gr5, Gr7, Gr9, Gr18, Gr23

Seamless pipe OD: 3.0mm - 110mm

Weld pipe OD: Up to 1000mm

WT: 0.1mm - 5.5mm

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai Metal Corporation is a leading titanium tube supplier and manufacturer.

Because of its strength, unique density and corrosion resistance, titanium has found applications in many industries. For high quality tubing products, it’s often a better substance to use than competing materials like stainless steels or super alloys. The density of titanium is about 60 per cent of that of steel- or nickel-based alloys giving significant weight savings in aerospace structures. The tensile strength is better than that of austenitic or ferritic stainless steels. Titanium is exceptionally corrosion resistant and exceeds the resistance of stainless steels in most environments. The metal is non-magnetic too, and has good heat transfer properties, with a melting point higher than steel alloys.

Titanium is easily worked. Combine that with its strength, stiffness, toughness and high melting point and it’s a very desirable metal for high performance metal tubing. We manufacture titanium tubes used in aircraft hydraulic systems, medical implants, offshore drilling rig components, subsea equipment, and marine and chemical processing plants.

If you want to know more about our titanium tube or other titanium price please feel free to contact us, we will reply you within 24 hours.

1) Standards: ASTM B338, ASTM F67, ASTM F136, STM B337

2) Grade: Gr1, Gr2, Gr5, Gr7, Gr9, Gr18, Gr23

3) Seamless pipe OD: 3.0mm - 110mm Weld pipe OD: Up to 1000mm

4) WT: 0.1mm – 5.5mm

5) Length: Up to 19 meters

6)Surface treatments: Anodizing, Polishing, Powder coated, Electrophoresis, Sand-blast, Coating film, etc.

1) Low Density and High Specification Strength

2) Excellent Corrosion Resistance

3) Good resistance to effect of heat

4) Excellent Bearing to cryogenic property

5) Nonmagnetic and Non-toxic

6) Good thermal properties

7) Low Modulus of Elasticity

1)Seawater desalination equipment

2)Shell and tube heat exchanger, condenser, evaporator, pipeline, etc

3)Bike rack

4)Marine pressure tube

5)Oil drilling pressure tube

1.Chemical composition test

2.Physical properties test

3.Appearance defects inspection

4.Flattening test

5.Flaring test

6.Hydrostatic test

7.Air tightness test

8.Ultrasonic flaw detection

9.Eddy current testing

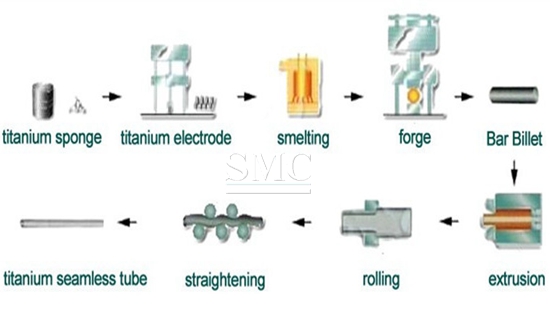

Main equipment and production

1.Melting Furnace

2.Extruder Machine

3.Drawing Mill

4.Bright Annealing Furnace

5.Cleaning & Pickling Line

6.Wedling Line for welded pipe

Parameters of Titanium Tube:

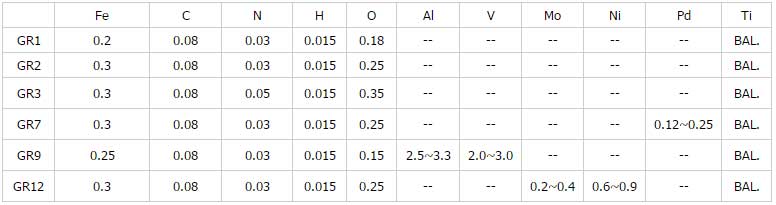

Chemical composition (%):

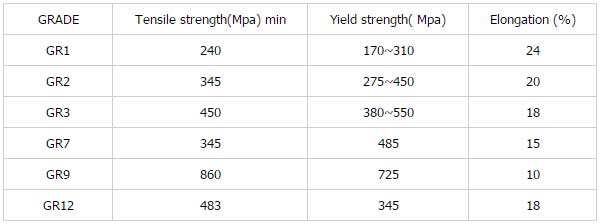

Mechanical properties:

Packaging of Titanium Tube

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Applications of Titanium Tube:

1) Heat exchangers and condensers

2) All kinds of corrosive fluid transmission pipeline system

3) Titanium bicycle tube, Automobile exhaust pipe

4) Offshore aquaculture

5) U type heat exchanger coil pipe, Condenser, Petroleum pipeline, Sea farming

6) Evaporimeter, Fluid Transporation Piping, etc.

7) Chlorine alkali, spaceflight, desalination, pure alkali, vacuum salt manufacturing, aviation spaceflight, nuclear power, petrifaction industry, medication sports equipments
