US Type Chain Swivel
Model: G-401/ G-402/ G-403
Size: 1/4''- 2-1/2''
Material: C45
Shanghai Metal Corporation is a professional manufacturer and supplier of US Type Chain Swivel with high quality and reasonable price.

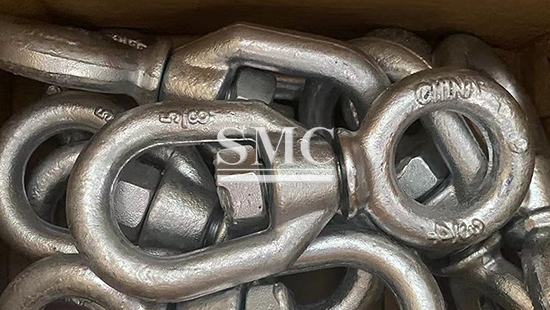

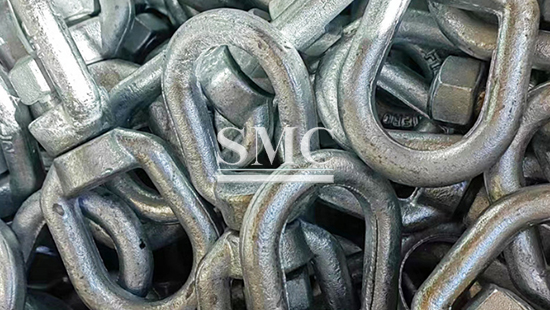

US Type Chain swivel is a type of rigging accessory, material normally be 40Cr, 35CrMo, 20CrMnTi. It is mainly used in power, metallurgy, petroleum, machinery lifting in various industries such as railways, chemicals, ports, mines, and construction. In terms of lifting, it can also be used with chains, wire ropes, double loops, hooks etc accessories to consist of lifting device.
If you want to know more about US Type Chain Swivel price please feel free to contact us, we will reply you within 24 hours

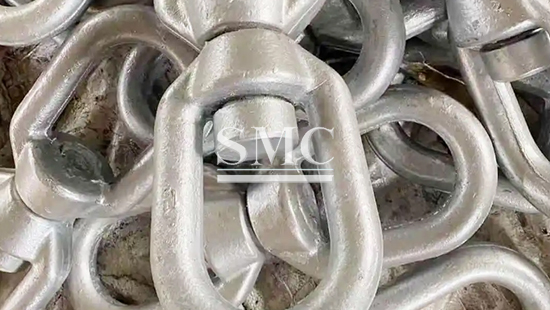

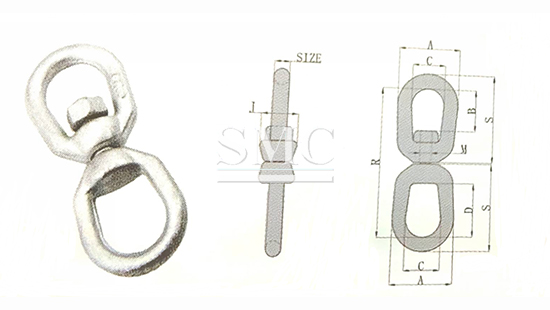

Technical Information of US Type Chain Swivel:
|

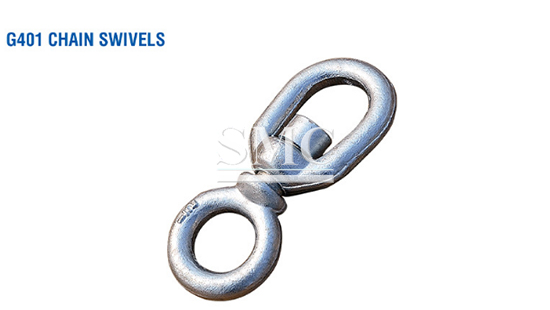

Chain Swivel G-401 |
||||||||||||
|
Size |
dimension(inch) |
WLL (LBS) |
||||||||||
|
A |
B |
C |
D |
E |
G |
J |
M |
R |
U |
V |
||
|
1/4'' |
1.25 |
0.69 |
0.75 |
0.62 |
1.12 |
0.25 |
0.69 |
0.31 |
2.25 |
1.69 |
1.25 |
850 |
|
5/16'' |
1.63 |
0.81 |
1.00 |
0.75 |
1.38 |
0.31 |
0.81 |
0.38 |
2.72 |
2.06 |
1.47 |
1250 |
|
3/8'' |
2.00 |
0.94 |
1.25 |
1.00 |
1.75 |
0.38 |
1.00 |
0.50 |
3.44 |
2.50 |
1.88 |
2250 |
|
1/2'' |
2.50 |
1.31 |
1.50 |
1.25 |
2.25 |
0.50 |
1.31 |
0.63 |
4.25 |
3.19 |
2.44 |
3600 |
|
5/8'' |
3.00 |
1.56 |
1.75 |
1.50 |
2.75 |
0.62 |
1.50 |
0.75 |
5.13 |
3.88 |
2.94 |
5200 |
|
3/4'' |
3.50 |
1.75 |
2.00 |
1.75 |
3.25 |
0.75 |
1.88 |
0.88 |
5.78 |
4.94 |
3.46 |
7200 |
|

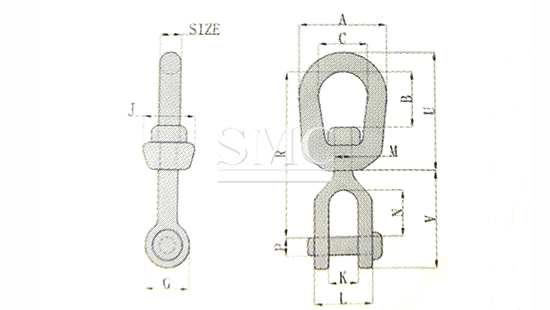

Chain Swivel G-402 |
|||||||||
|
Size |
dimension(inch) |
WLL (LBS) |
|||||||
|
A |
B |
C |
D |
J |
M |
R |
S |
||
|
1/4'' |
1.25 |
0.69 |
0.75 |
1.06 |
0.69 |
0.31 |
2.94 |
1.69 |
850 |
|
5/16'' |
1.63 |
0.81 |
1.00 |
1.25 |
0.81 |
0.38 |
3.56 |
2.06 |
1250 |
|
3/8'' |
2.00 |
0.94 |
1.25 |
1.50 |
1.00 |
0.50 |
4.31 |
2.50 |
2250 |
|
1/2'' |
2.50 |
1.31 |
1.50 |
2.00 |
1.31 |
0.63 |
5.44 |
3.19 |
3600 |
|
5/8'' |
3.00 |
1.56 |
1.75 |
3.38 |
1.50 |
0.75 |
6.56 |
3.88 |
5200 |
|
3/4'' |
3.50 |
1.75 |
2.00 |
2.63 |
1.88 |
0.88 |
7.19 |
4.31 |
7200 |
|
7/8'' |
4.00 |
2.06 |
2.25 |
3.06 |
2.13 |
1.00 |
8.38 |
5.00 |
10000 |
|
1'' |
4.50 |
2.31 |
2.50 |
3.50 |
2.38 |
1.13 |
9.63 |
5.75 |
12500 |
|
1-1/4'' |
5.63 |
2.69 |
3.13 |
3.69 |
3.00 |
1.50 |
11.44 |
6.75 |
18000 |
|
1-1/2'' |
7.09 |
3.88 |
4.09 |
3.88 |
3.75 |
2.25 |
16.69 |
9.91 |
45200 |
|

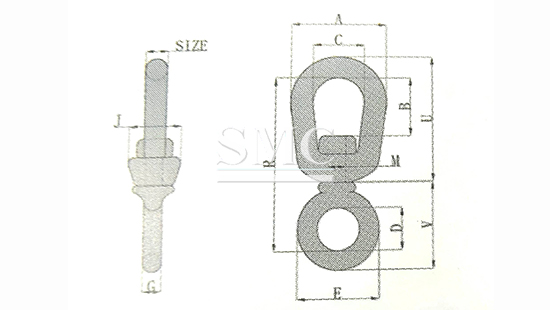

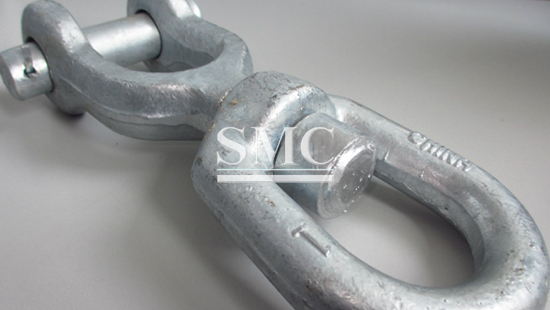

Chain Swivel G-403 |
||||||||||||||
|
Size |
dimension(inch) |
WLL (LBS) |
||||||||||||
|
A |
B |
C |
G |
J |
K |
L |
M |
N |
P |
R |
U |
V |
||
|
1/4'' |
1.25 |
0.69 |
0.75 |
0.69 |
0.69 |
0.47 |
1.03 |
0.31 |
0.88 |
0.25 |
2.63 |
1.69 |
1.69 |
850 |
|
5/16'' |
1.63 |
0.81 |
1.00 |
0.81 |
0.81 |
0.50 |
1.13 |
0.38 |
0.88 |
0.31 |
2.94 |
2.06 |
1.81 |
1250 |
|
3/8'' |
2.00 |
0.94 |
1.25 |
1.00 |
1.00 |
0.63 |
1.41 |
0.50 |
1.06 |
0.38 |
3.63 |
2.50 |
2.25 |
2250 |
|
1/2'' |
2.50 |
1.31 |
1.50 |
1.31 |
1.31 |
0.75 |
1.75 |
0.63 |
1.31 |
0.50 |
4.50 |
3.19 |
2.88 |
3600 |
|
5/8'' |
3.00 |
1.56 |
1.75 |
1.63 |
1.50 |
0.94 |
2.06 |
0.75 |
1.50 |
0.63 |
5.31 |
3.88 |
3.44 |
5200 |
|
3/4'' |
3.50 |
1.75 |
2.00 |
1.88 |
1.89 |
1.13 |
2.53 |
0.88 |
1.75 |
0.75 |
6.06 |
4.31 |
4.00 |
7200 |
|
7/8'' |
4.00 |
2.06 |
2.25 |
2.13 |
2.13 |
1.19 |
2.75 |
1.00 |
2.06 |
0.88 |
7.00 |
5.00 |
4.54 |
10000 |
|
1'' |
4.50 |
2.31 |
2.50 |
2.63 |
2.38 |
1.75 |
3.72 |
1.13 |
2.81 |
1.13 |
8.56 |
5.75 |
5.94 |
12500 |
|
1-1/4'' |
5.69 |
2.69 |
3.13 |
3.13 |
3.00 |
2.06 |
4.31 |
1.63 |
2.81 |
1.38 |
9.75 |
7.06 |
6.38 |
18000 |
|
1-1/2'' |
7.00 |
3.88 |
4.00 |
5.63 |
4.00 |
2.88 |
6.00 |
2.25 |
4.44 |
2.25 |
14.25 |
10.00 |
10.84 |
45200 |

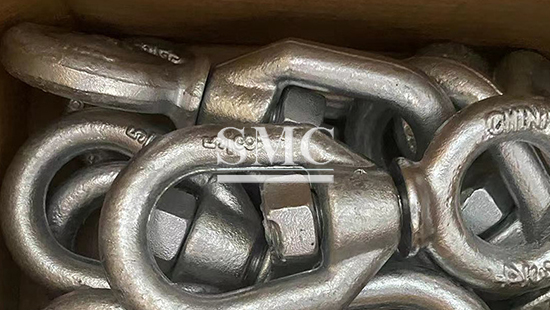

Packaging of US Type Chain Swivel:

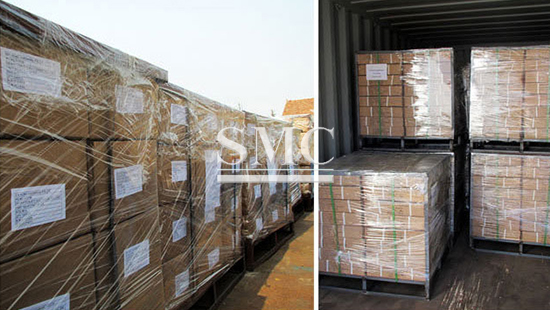

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
