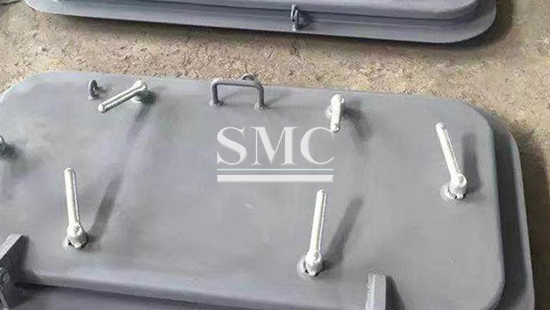

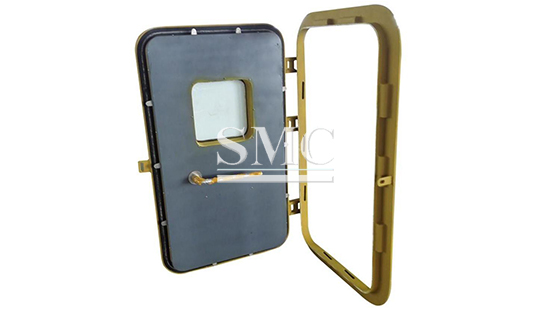

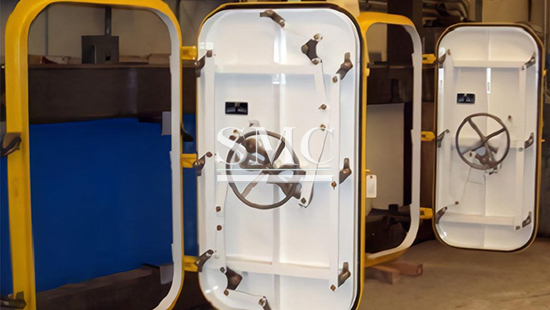

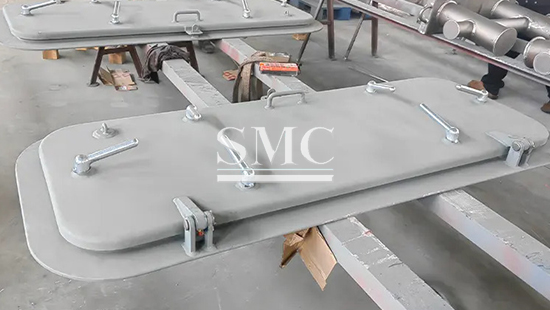

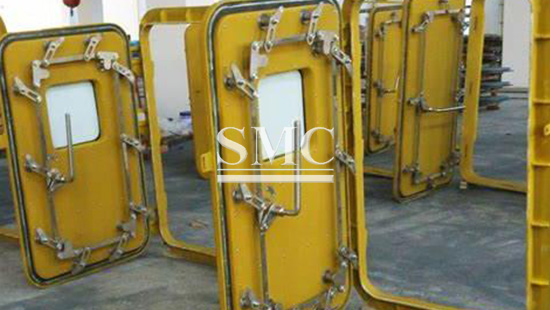

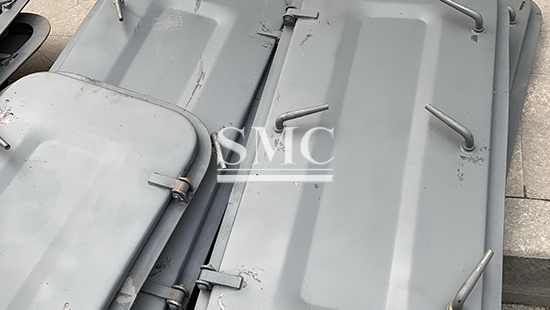

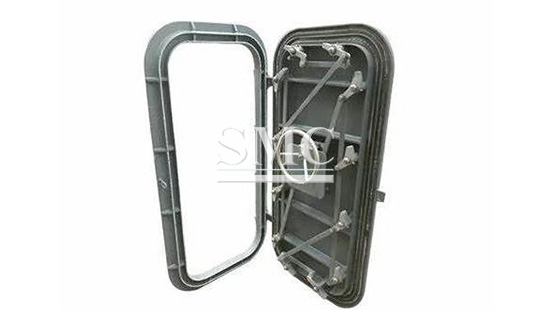

Type: Hinged watertight door, sliding watertight door
Material: Carbon steel, aluminum alloy
Shanghai Metal Corporation is a professional manufacturer and supplier of Watertight Door with high quality and reasonable price.
It’s a general name for a variety of doors that meet watertight requirements. According to the thickness of the door plate and the number of wedge handles, there are generally heavy watertight doors and light watertight doors.
Two types of hinged watertight doors and sliding watertight doors are commonly used. The former structure is lightweight, easy to open and close; the latter is used for water pressure resistance requirements and the status of the restricted premises, the structure is solid, but need to be equipped with a control system. As for the grade of the watertight door, the installation of the premises, the number, the tightness requirements, the transmission mechanism control mode and the use of conditions, etc., in the shipbuilding specification and the relevant international conventions have corresponding provisions.
If you want to know more about Watertight Door price please feel free to contact us, we will reply you within 24 hours
Technical Information of Watertight Door:
Spec. |
Through Hole Size |
Bulkhead opening size |
B |
H |
h2 |
h3 |
WEIGHT |
A |
600×1000 |
916×1316 |
910 |
1310 |
250 |
180 |
530 |
600×1200 |
916×1516 |
1510 |
300 |
220 |
601 |
||
600×1400 |
916×1716 |
1710 |
330 |
250 |
716 |
||
600×1600 |
916×1916 |
1910 |
360 |
280 |
850 |
||
B |
600×1000 |
1086×1486 |
1080 |
1480 |
680 |
- |
580 |
600×1200 |
1086×1686 |
1680 |
720 |
- |
660 |
||
Note: Weight refers to the structural weight of the watertight door, excluding the hydraulic system. |

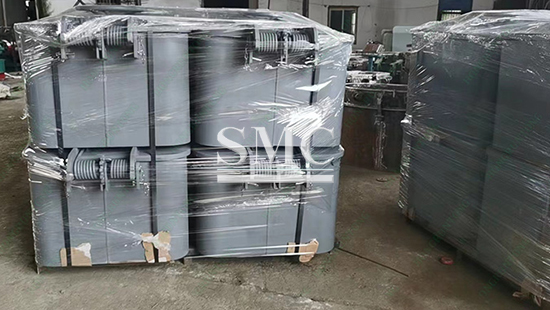

Packaging of Watertight Door:
