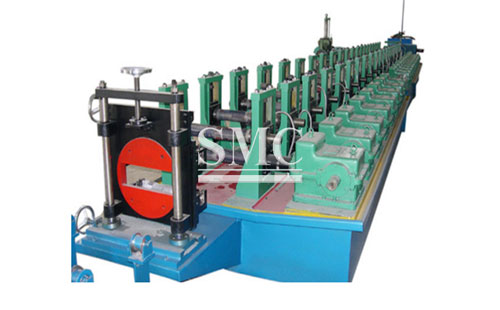

Shelf Rack Column Forming Machine

    Material Size: 75mm, 100mm, 150mm, 200mm, customization


    Material Thickness: 1.5~2.5mm, customization


    Material Type: Galvanized Steel

Product Detail

We can design and manufacture the roll forming machine,rolling machine,roll former that is able to make any profile according to

customers' needs with the technology from Finland and Germany.

All the information here including the specifications and the product pictures are based on the roll forming machine that we've export lately.

Please have a look for the reference.


1. Machine Name: storage shelf rack column roll forming machine


2. Machine Component:
De-coiler-> 1 set
Feeding Guiding Leveling Device-> 1 set
Servo Feeder-> 1 set
Hydraulic Punching Machine-> 1 set
Roll Forming Unit -> 1 set
Track Hydraulic Cutting-> 1 set
Hydraulic station-> 1 set
Computer Control Box-> 1 set
Product Discharge Rack-> 3 sets

3. Machine Specification:
Material Size: 75mm, 100mm, 150mm, 200mm, [Depends on customers' needs]
Material Thickness: 1.5~2.5mm [According to the demands]
Material Type: Galvanized Steel,
Main Motor Power: 35KW [depends on final design]
Cutting Motor Power: 18.5KW [depends on final design]
Cutting Type: Hydraulic Track Cutting
Forming Frame Structure: Guiding Column
Driven System: Worm Gear box
Machine Dimension: 16.5mX1.2mX1.35m [depends on final design]
Power Supply: Voltage 380V / 50HZ / 3Phase

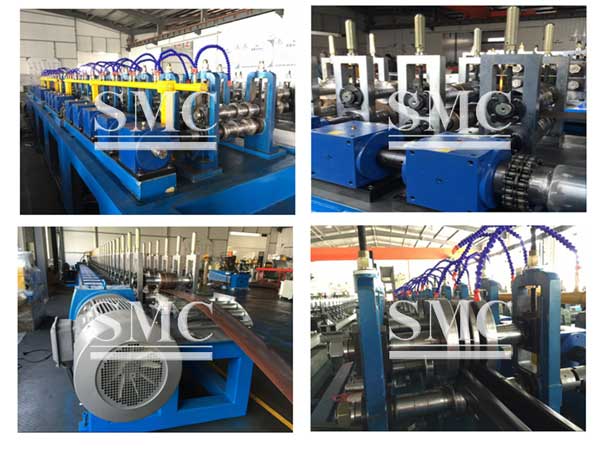

4.Product View:
