Processing Machine

Rolling mill

    Type: Cold Rolling Mill


    Certification: CE ISO9001


    After-sales Service Provided: Engineers available to service machinery overseas

Product Detail

Shanghai Metal Corporation is experienced supplier for cold rolling mills, including all types of two-roll, four-roll, six-roll cold rolling mills, four-roll reversing rolling mill, and so on.

The rolling mills could also be customized according to customers’ requests. We will also provide technique, installation and training support.

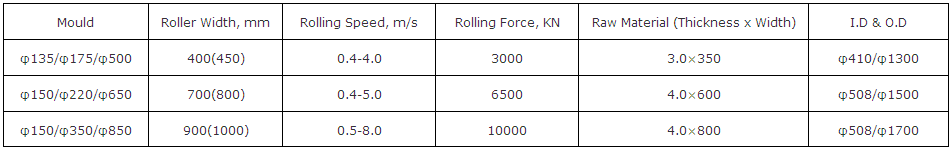

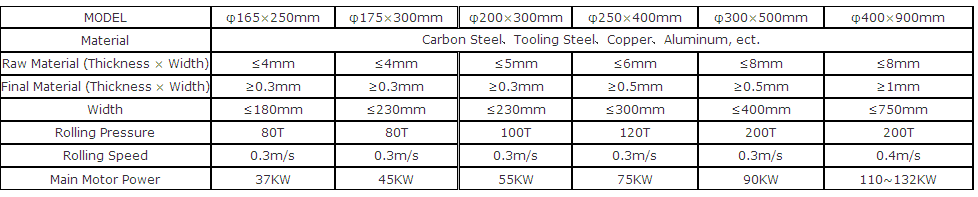

1. Two-roll cold-rolling mill


Other Model could be customized, such as φ120×160, φ150×220, φ175×400, φ200×400, φ250×500, φ320×600, φ350×600, φ500×1000, and so on.

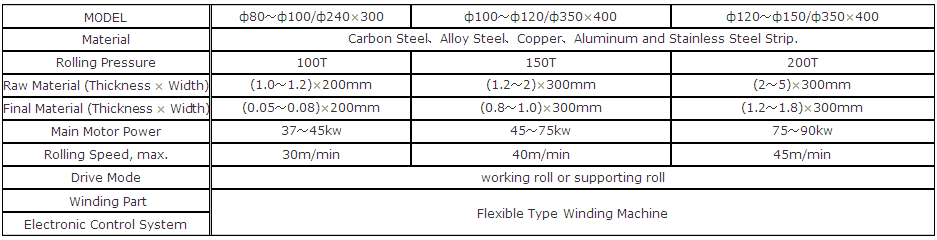

2. Four-roll cold-rolling mill

Application:

It is suitable to Carbon Steel、Alloy Steel、Copper、Aluminum and Stainless Steel Strip, which could be rolled by rough rolling and precision rolling.

Equipment structural and characteristics:

High rolling pressure, high precision and stability.

The machine has big rolling force, high precision and strong stability.

This machine is composed of main motor, reducer, herringbone gear box, gimbal axis, frame, press roll system, and so on, USES the whole base which is ease for installation.

This housings is controlled by spring balance system, which uses the pressure screw nut to adjust height, the entrance is equipped with a guide device, which control winding tension of the strip.

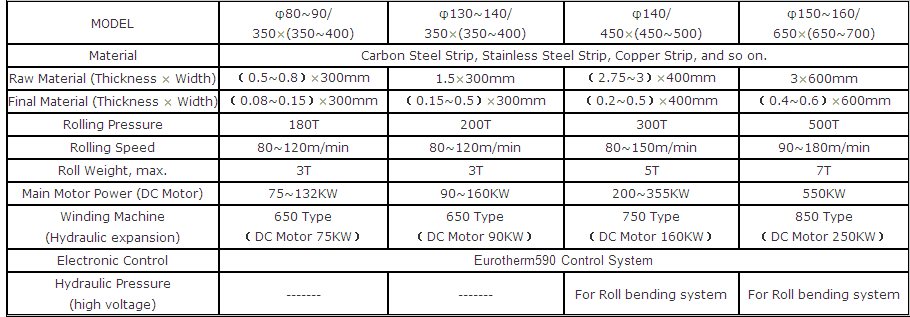

3. Four-roll reversing rolling mill

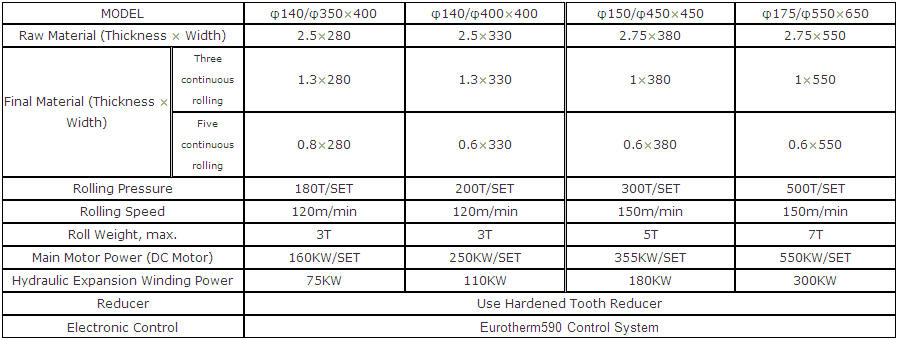

4. Four-roll continuous rolling mill

Other Model could be customized, such asφ45/φ180×250, φ70/φ210×250, φ90/φ260×300, φ135/φ300×350, φ165/φ400×400, φ175/φ400×400, and so on.





5. Six-roll rolling mill

Packaging of Auto Air-conditioned Compressor:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Shanghai Metal Standard

2)Customization
