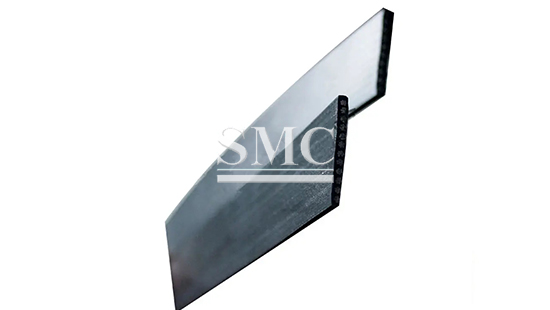

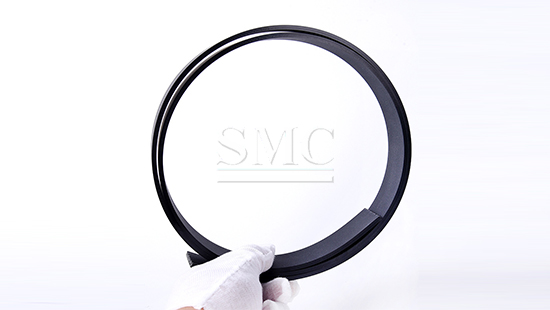

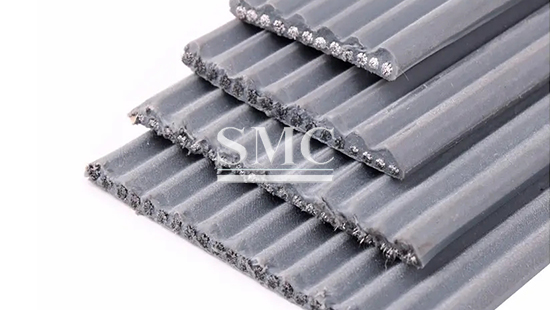

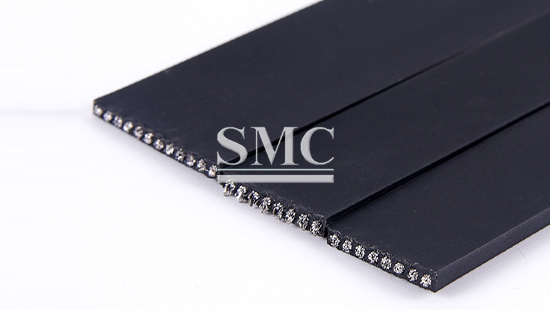

Coated-Steel Flat Belt/ Timing Belt Pitches
Material: polyurethane + wire rope
Size: can be customized
Type: flat belt, V belt
Shanghai Metal Corporation is a leading coated-steel flat belt manufacturer and supplier.

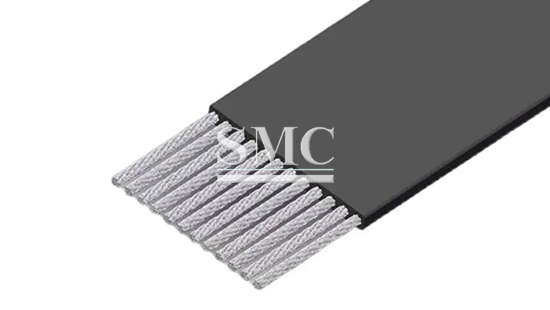

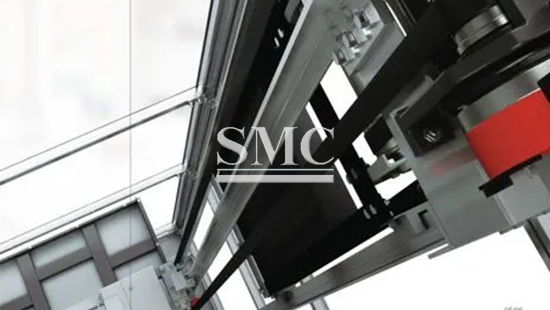

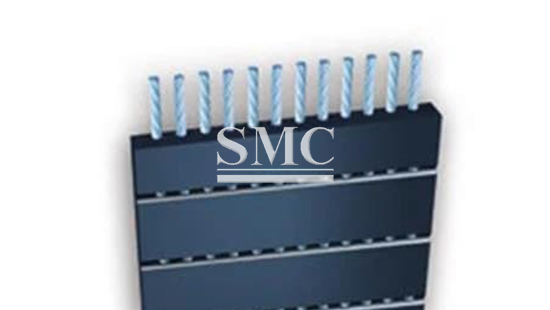

Flat Belt is the combination of high strength steel strands and high tech polymers that allows the creation of the innovative drive systems in the smallest possible space compared to conventional steel cables. Flat Belt offers higher load-bearing capacity with a reduced metallic cross-section. Flat Belt cover a very wide range of different applications. As an alternative to chains and wire rope hoist systems, they offer the user a maintenance-free, cost and space saving solution for the respective area of application.
If you want to know more about our coated-steel flat belt price please feel free to contact us, we will reply you within 24 hours.
-
Increased flexibility and traction
Lower belt elongation under load
High running quality (low vibration and noise)
High resistance to external influences (e.g. weathering, abrasion, UV radiation)
High tensile strength
Extreme bending and flexural fatigue strength
Smaller pulley and idler diameters
High wear resistance
Halogen and silicone free
-
|
Model |
Width |
Thickness |
Breaking force |
Min. bending |
Weight |
Number of steel wire |
Wire Diameter |
|
BF-30*3.3/10*2.0 |
30 |
3.3 |
43 |
100 |
250 |
10 |
2.1 |
|
BF-60*3.3/20*2.0 |
60 |
3.3 |
86 |
100 |
500 |
20 |
2.0 |
|
BF-25*3.3/8*2.0 |
25 |
3.3 |
42 |
100 |
200 |
8 |
2.1 |
|
BF-36*3.3/12*2.0 |
36 |
3.3 |
61 |
100 |
290 |
12 |
2.1 |
|
BF-50*3.3/16*2.0 |
50 |
3.3 |
84 |
100 |
400 |
16 |
2.1 |
