Air-Operated Machine

    Air-operated Machine


    Printing area: 800mm x 1600mm; 650mm x 1250mm


    Power: 16kw; 10k

Shanghai Metal Corporation is a leading air-operated machine for Lead Frames manufacturer and supplier.

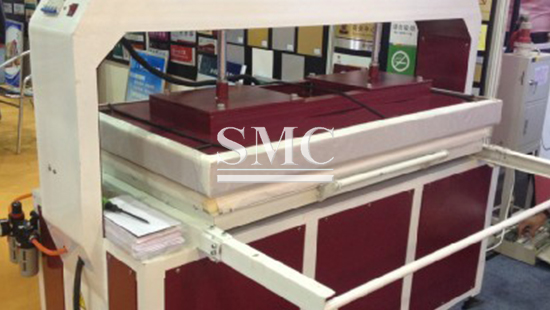

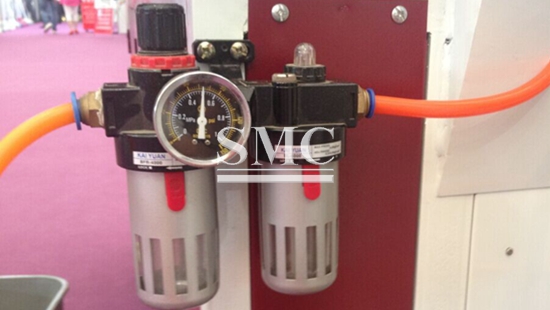

Before operation, we shall inspect the joint between the machine and air compressor to ensure it is tight. Adjust the pressure till 0.4-0.5, connect the air line of air pump to the yellow line in the exit, then switch on. Meanwhile, turn on the air pump to heat the heating plate. Put the pasted sheet on the platform after well-heated, the side with heat transfer paper shall be upside. Ensure the platform is parallel with the heating plate, press the manual button. When time is enough, the heat plate will rise automatically. Pull the platform, sheet is printed.

We offer lifetime warranty of the heating plate. Any malfunction of electrical part or other equipment, we ensure free part delivered within a year (However, any damage caused by human factor, such as inflow of solenoid valve, wiring error, customer need to pay equipment and labor cost).

Printing temperature and time for reference

Product

Temperature

Time

Silk

180℃

15 seconds

Cotton cloth

150-180℃

10 seconds

Pvc board

180℃

15 seconds

T shirt

200℃

15 seconds

Pearly sheet

200℃

20 seconds

Stainless steel sheet

200℃

20 seconds

Chemical fabric

200-210℃

25 seconds

Metal sheet

200℃

40 seconds

Tile

210-220℃

5 minutes

Glass

200℃

150 seconds

If you want to know more about our machinery products or air-operated machine for Lead Frames price please feel free to contact us, we will reply you within 24 hours.

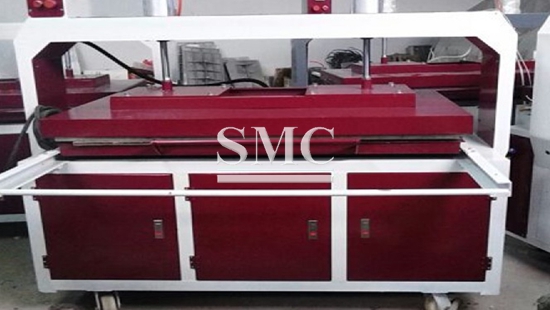

Technical Information of Air-Operated Machine:

Printing area: 800mm x 1600mm; 650mm x 1250mm

Power: 16kw; 10kw

Temperature: 200℃

Operating period: 40 seconds

Power supply: 380

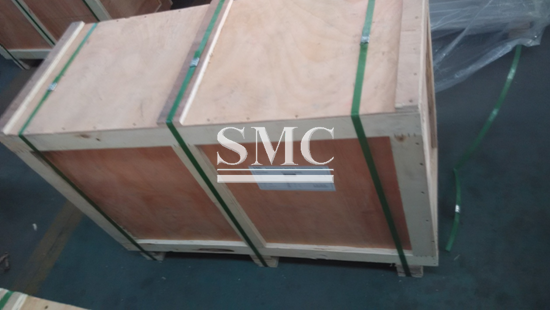

Packaging of Air-Operated Machine:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests.

Great care is taken to avoid any damage which might be caused during storage or transportation.

In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Shanghai Metal Corporation Standard

2)Customization

packaging

Other Related Material of Air-Operated Machine:

1. Manual-operated Machine

03

2. Guillotine: used to cut pieces, max thickness 1mm, max width 1300mm

04

3. High temperature resistant adhesive tape: thickness 0.5mm x width 5mm x length 30m

05
