Thread Size: M5-M36

Length: 70-600mm or customizable

Grade: Class 4.8/6.8/8.8/10.9/12.9

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Concrete Screw Anchor with high quality and reasonable price.

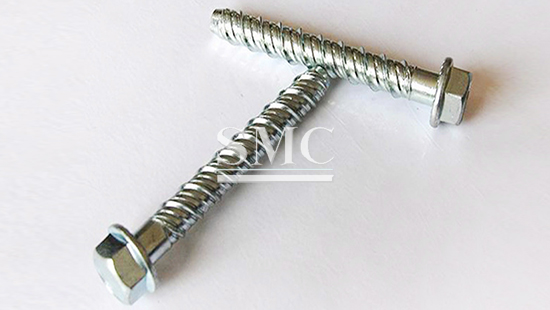

Concrete screw anchor, also called concrete screw or concrete bolt, are designed for quick, safe, secure fastening for a variety of jobs in concrete, cement, brick, cinder block and masonry.

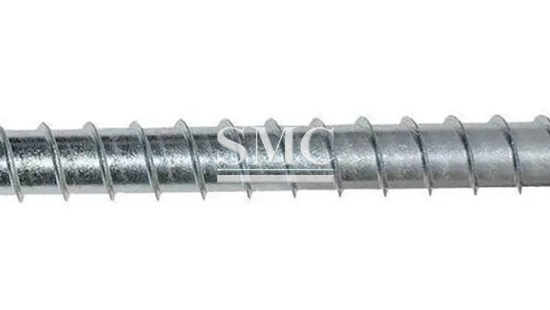

Concrete screw anchor is an externally threaded, hardened screw with a double lead, consisting of alternating raised and lowered threads with notches cut into the threads, and a diamond-shaped, nail type point.

Concrete screw anchor eliminate the need for an anchor when used in light and medium duty applications. When used in concrete, concrete screws can be removed and re-driven into the same hole.

If you want to know more about Concrete Screw Anchor price please feel free to contact us, we will reply you within 24 hours

Long thread
Suitable for spacing installation
Flexible adjustment

1. The cutting edae is made of high-strenath material to ensure that the thread can smoothly cut into the hole wall of the base material.
2. The anchors are made of wear-resistant materials and reusable.
3. Installation and tightening can be completed in one go, saving construction time.
4. Small expansion stress, enabling installation with small edges and spacing.
5. Completely detachable, especially suitable for temporary fixing.

1. Fixing fences, pipes, etc.
2. Temporary fixation during emergency repair construction
3. Anchorage of exterior wall insulation panels

Technical Information of Concrete Screw Anchor:

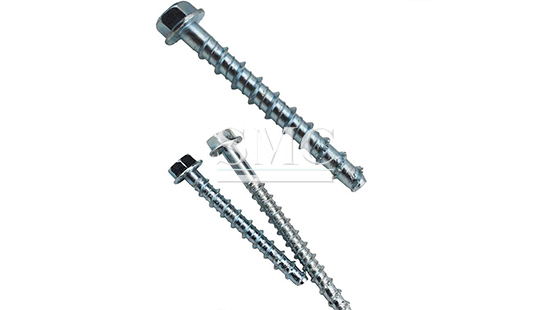

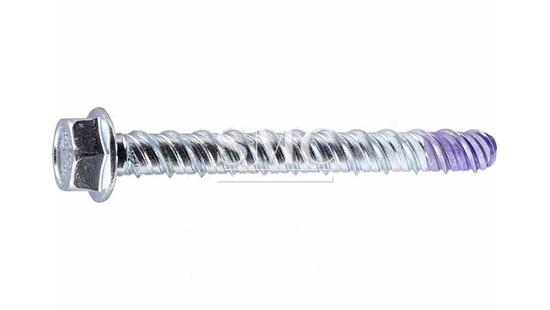

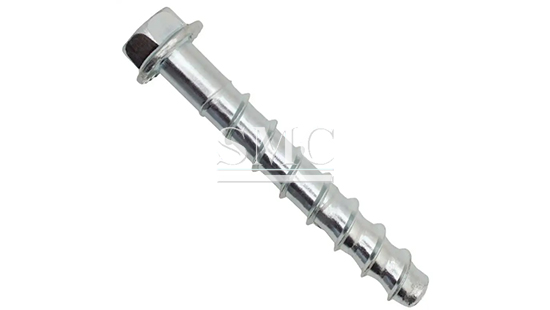

Concrete screw anchor provide self-threading action and maximum holding power for anchoring the following to masonry: electrical junction boxes, wooden beams, plywood, exterior insulation, metal flashing, expansion joints, duct straps, gutters, fixtures, and thresholds. These screws are available in two different head styles: flat head and hex head. Flat head screws have a phillips drive style, while the hex head can be a slotted or unslotted indented hex head style.

Product Specifications	Product Length (mm)	Drill Diameter (mm)	Drill Deepth (mm)	Depth of Burial (mm)	Anchor Thickness (mm)	Anchor Aperture (mm)
M8	70-130	8	80-140	65	5-65	12
M10	70	10	80	65	5	14
M10	90-260	10	100-270	85	5-175	14
M12	90	12	100-270	85	5	16
M12	110-150	12	120-160	100	10-50	16
M14	110	14	120	100	10	18
M14	135-160	14	170	125	10-35	18

Packaging of Concrete Screw Anchor:

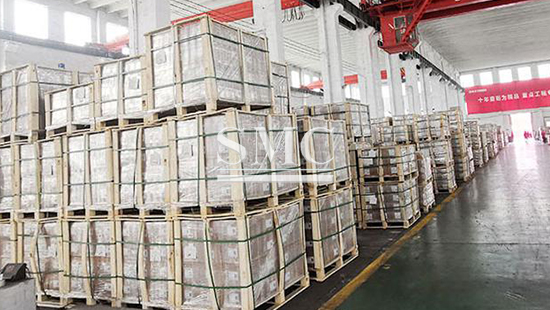

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
