Size: Max. 5000x3000mm (LXH)

Type: Finned type

Structure: Aluminum foil + copper tube, copper foil + copper tube, stainless steel foil+ copper tube, etc.

Color: customized

Product Detail | Technical Information | Packaging

Product Detail

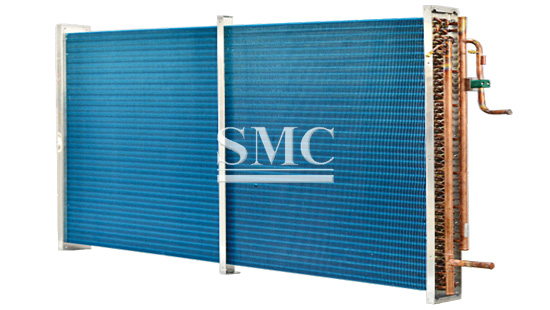

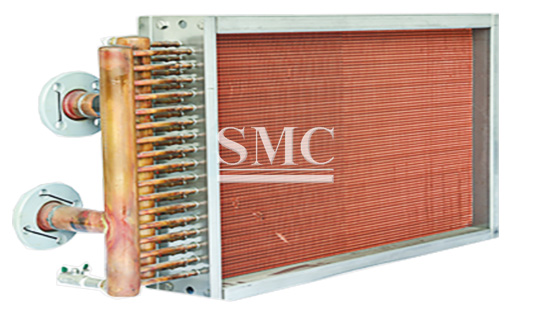

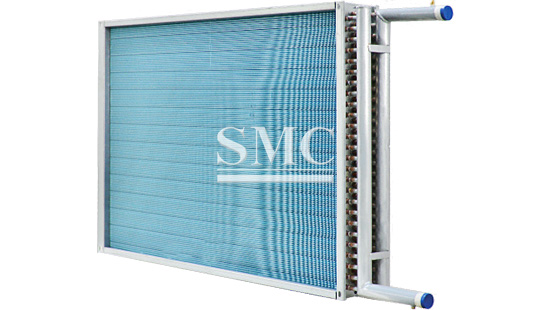

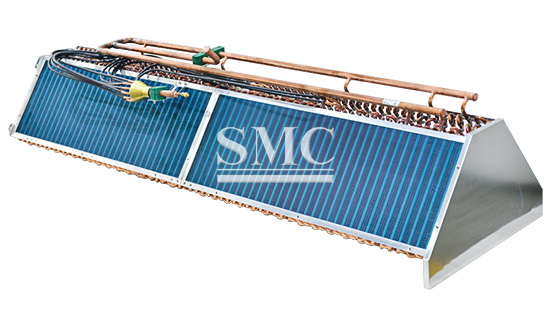

Shanghai Metal Corporation is a leading manufacturer and supplier of Finned Heat Exchanger in China. The device can be connected with the master device to achieve the purpose of heating or cooling. This type of equipment is commonly used in air conditioning systems, especially in industrial centralized air supply drying and condensation systems.

Shanghai Metal adopt advanced UNILAB® Italy simulation selection software to meet customer customization needs. If you want to know more about Finned Heat Exchanger, please feel free to contact us, we will reply you within 24 hours.

Size: Max. 5000x3000mm (LXH)
Material: Body Frame: GI steel, stainless steel,
Fin: aluminum foil, copper foil, stainless foil
Tube: copper tube (TP2, C1220)
collecting main: Copper tube, stainless steel tube, steel tube, etc.
Liquid medium: water, vapor, glycol

Well designed structure, close contact, and good heat exchangeperformance.
Cost saving, with high performance to price ratio.
Avanced processing technology, strict quality assurance system.
Easy to install and use, simple and convenient to maintain.
High quality welding quality, pressure test up to 3Mpa, to meet the strict requirements of customers

Air heat exchangers (radiators) are widely used in finned heat exchangers in the lithium battery industry, central air-conditioning, light industry, construction, machinery, textiles, printing and dyeing, electronics, food, medicine, metallurgy and painting and other refrigeration equipment industries.

No	Mould size	Finned type	Thickness mm	flanging height mm	Length	Material
1	φ719.0516.5	Waved/Casement	0.095-0.12	1.3-2.0	200-2600	Aluminum foil/copper foil
2	φ72118.19	Waved/Casement	0.095-0.12	1.3-3.0	200-2500	Aluminum foil/copper foil
3	φ72112.7	Waved/Casement	0.095-0.12	1.3-2.0	200-1600	Aluminum foil/copper foil
4	φ72112.7	Waved/Casement	0.095-0.12	1.3-2.0	200-1600	Aluminum foil/copper foil
5	φ72112.7	Waved/Casement	0.095-0.12	1.3-2.0	200-1600	Aluminum foil/copper foil
6	φ7.942219.05	Waved/Casement	0.095-0.12	1.3-3.0	200-2500	Aluminum foil/copper foil
7	φ9.12521.65	Waved	0.095-0.12	2.0-5.0	280-6000	Aluminum foil/copper foil
8	φ9.5225.422	Waved/Casement	0.095-0.12	1.3-2.0	200-2500	Aluminum foil/copper foil
9	φ9.522521.65	Waved/Casement	0.095-0.12	1.3-3.0	200-2500	Aluminum foil/copper foil
10	φ9.5225.422	Waved/Casement	0.095-0.12	1.3-2.0	200-2500	Aluminum foil/copper foil
11	φ12.731.7527.5	Waved	0.095-0.2	2.0-5.0	280-6000	Aluminum foil/copper foil
12	φ12.731.7527.5	Waved	0.105-0.2	2.0-3.5	280-6000	Aluminum foil/copper foil
13	φ14.35050	Waved	0.105-0.2	2.0-5.0	280-6000	Aluminum foil/copper foil
14	φ15.8838.133	Waved	0.105-0.2	2.0-3.5	280-6000	Aluminum foil/copper foil
15	φ15.8838.133	Waved	0.105-0.13	2.0-3.5	280-6000	Stainless steel foil
16	Foil Finish	Inorganic Hydrophilic, Organic Hydrophilic, Organic Antibacterial Hydrophilic, Organic High Corrosion-resistant Hydrophilic, Black Epoxy High Corrosion-resistant Hydrophilic, Epoxy Phenolic Resin High Corrosion-resistant Hydrophilic, Organic Lyophobic
17	Color	Blue, Dark Blue, Light Golden, Golden, Dark Golden, Green, Light Green, Milk White, Black, other colors can be customized
*Other size can be customized, please contact us for more details

Packaging of Finned heat exchanger/Finned surface cooler/Finned steam heater

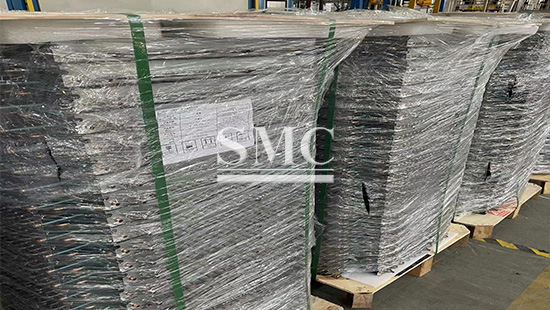

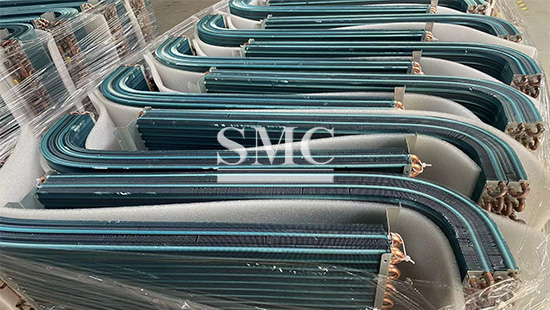

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. Foam Paper carton, Pearl cotton carton, Wooden Pallet is adpoted. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

packaging
