High Silicon Cast Iron Anode
Electrochemical Capacity: 2.5-5.0 A·yr/kg
Consumption Rate: 0.1-0.5 kg/A·year
Working Current Density: 10-50 A/m²
Resistivity: 70-85 μΩ·cm
Shanghai Metal Corporation is a leading manufacturer and supplier of High Silicon Cast Iron Anode.
High Silicon Cast Iron Anode is a critical component in impressed current cathodic protection systems, renowned for its exceptional corrosion resistance in harsh environments. It provides long-term, stable electrochemical protection for underground or submerged metal structures through the formation of a stable hydrated SiO₂ protective film on its surface.
The superior corrosion resistance of high silicon cast iron stems from the formation of a comprehensive protective film containing large-area hydrated SiO₂. The addition of chromium or chromium with molybdenum enables application in corrosive chloride environments, making it the preferred auxiliary anode material for impressed current cathodic protection systems worldwide. We support customized production according to specific requirements for length, diameter, and chemical composition to meet diverse project needs.
If you want to know more about our mechanical products or hydraulic puller price, please feel free to contact us. We will reply you within 24 hours.
Technical Information of High Silicon Cast Iron Anode:
|
Anode Model |
Dimensions (A×B) |
Connection End (C) |
Total Length (D) |
Weight (kg) |
|
GS-515T-1536 |
φ38×915 |
63.00 |
90.00 |
8.50 |
|
GS-515T-1548 |
φ38×1220 |
63.00 |
90.00 |
11.20 |
|
GS-515T-1560 |
φ38×1524 |
63.00 |
90.00 |
13.50 |
|
GS-515T-2036 |
φ51×915 |
76.00 |
90.00 |
14.20 |
|
GS-515T-2048 |
φ51×1220 |
76.00 |
90.00 |
18.50 |
|
GS-515T-2060 |
φ51×1524 |
76.00 |
90.00 |
23.00 |
|
GS-515T-3036 |
φ76×915 |
102.00 |
100.00 |
32.00 |
|
GS-515T-3048 |
φ76×1220 |
102.00 |
100.00 |
41.00 |
|
GS-515T-3060 |
φ76×1524 |
102.00 |
100.00 |
50.00 |

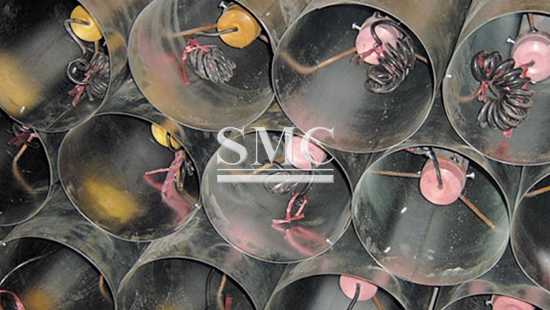

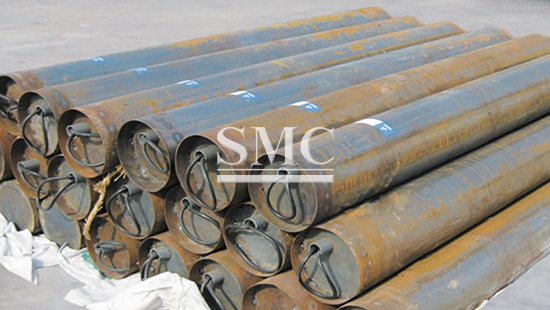

Packaging of High Silicon Cast Iron Anode:
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
