Standard: AISI, ASTM A600, DIN EN ISO 4957, JIS G4403

Grade: M2, M7, M35, M42, SKH51, etc

Diameter: 0.8 - 14mm

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of High Speed Steel Wire with high quality and reasonable price.

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multi-component system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

If you want to know more about High Speed Steel Wire price please feel free to contact us, we will reply you within 24 hours

Steel Grade: M2, M7, M35, M42, etc

Delivery status: annealed, quenched+tempered

Surface: black, grinding, polishing, bright

Coil weight: 250kg - 350kg per coil, or based on customers' need

Package: Coiling Packing,spools packing,or according customer's need

High working hardness

Resistance to large variations in temperature

Corrosive resistance

Excellent toughness

Compressive strength

Resistant High Mechanical Stresses

1.Cutting tools

2. Mechanical Spring

3. Wire rope/cord

4. Mechanical modules

5. Welding wire

Technical Information of High Speed Steel Wire:

Chemical Corporation of High Speed Steel (%)
Grade	C	Si	Mn	W	Mo	Cr	V	Others
W9Mo3Cr4V	0.77-0.87	0.20-0.40	0.20-0.40	8.50-9.50	2.70-3.30	3.80-4.40	1.30-1.70	-
W6Mo5Cr4V2	0.80-0.90	0.20-0.45	0.15-0.40	5.50-6.75	4.50-5.50	3.80-4.40	1.75-2.20	-
Din M2	0.86-0.94	≤0.45	≤0.40	6.00-6.70	4.70-5.20	3.80-4.50	1.70-2.00	-
W6Mo5Cr4V2Al(M2Al)	1.05-1.20	0.20-0.60	0.15-0.40	5.50-6.75	4.50-5.50	3.80-4.40	1.75-2.20	Al: 0.80-1.20
W6Mo9Cr4V2	0.97-1.05	0.20-0.55	0.15-0.40	1.40-2.10	8.20-9.20	3.50-4.00	1.75-2.20	-
W6Mo5Cr4V2Co5(M35)	0.88-0.96	0.25-0.45	0.20-0.40	6.00-6.70	4.70-5.20	3.80-4.50	1.70-2.00	Co: 4.50-5.50
W2Mo9Cr4VCo8(M42)	1.05-1.15	0.15-0.65	0.15-0.40	1.15-1.85	9.00-10.00	3.50-4.25	0.95-1.35	Co: 7.75-8.75
W18Cr4V(W18)	0.70-0.80	0.20-0.40	0.10-0.40	17.50-19.00	≤0.3	3.80-4.40	1.00-1.40	-
W4Mo3Cr4VSi(W4)	0.88-0.98	0.50-1.00	0.20-0.40	3.50-4.50	2.50-3.50	3.80-4.40	1.20-1.80	-
W4Mo2Cr4VSi(T-4241)	0.90-1.00	0.80-1.30	0.20-0.45	1.50-2.50	0.50-1.20	3.80-6.00	0.50-1.00	-
H13(4CrMoSiV1)	0.32-0.45	0.80-1.20	0.20-0.50	-	1.10-1.75	4.75-5.50	0.80-1.20	-
Cr12Mo1V1	1.40-1.60	≤0.60	≤0.60	-	0.70-1.20	11.00-13.00	0.50-1.10	-
3Cr2W8V	0.30-0.40	≤0.40	≤0.40	7.50-9.00	-	2.20-2.70	0.20-0.50	-
9Cr18MoV	0.85-0.95	≤0.80	≤0.80	-	1.00-1.30	17.00-19.00	0.07-0.12	-
9Cr18Mo	0.95-1.10	≤0.80	≤0.80	-	0.40-0.70	16.00-18.00	-	-
9Cr18	0.90-1.00	≤0.80	≤0.80	-	≤0.75	17.00-19.00	-	-

Packaging of High Speed Steel Wire:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

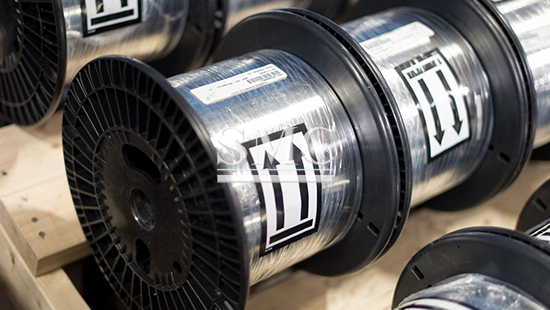

High Speed Steel Wires are packed in wooden boxes, crates, cartons, and cases or in big rolls with plastic spool support. This provides extra support on products to avoid oxidation while transits.

1)SMC Standard

2)Customization
