Storage Tank

Liquefied Gas Storage Tank

    Capacity:30t、50t、100t...



    Pressure rating:0.8MPa、1.6MPa、2.5MPa...



    Material selection:Q345R、16MnDR...

Shanghai Metal Corporation is a professional manufacturer and supplier of Liquefied Gas Storage Tank with high quality and reasonable price.

Liquefied gas storage tank is a device used to store liquefied gas, usually made of steel materials.It’s usually used to store LPG, liquefied natural gas and other gases, which are widely used in chemical, oil, natural gas and other fields.

Specification:Its size and weight also vary depending on the capacity. When selecting and using Liquefied gas storage tank, it is recommended to carefully read the specification sheet and technical information provided by us and ensure that it meets your specific needs and applicable standards.

If you want to know more about Liquefied Gas Storage Tank or storage tank price please feel free to contact us, we will reply you within 24 hours

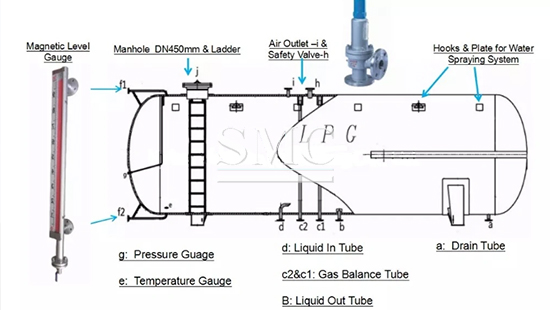

Technical Information of Liquefied gas storage tank:

project

parameters

project

parameters

Roll

2-100m3

Casing Thickness

14mm

Tank material

Q345R

End Plate Thickness

16mm

Overall size

10962*2728*3318mm

Tank net weight

12750KG

Tank diameter

2700mm

Loading capacity

23940KG

Design Pressure

1.77MPa

Gas density

420KG/m3

Hydraulic test pressure

2.22MPa

corrosion allowance

1mm

Design temperature

-209C~60C

Hot treatment

Draft

Vapour outlet

DN50

Gas outlet

DN50

Life span

15year

.

.

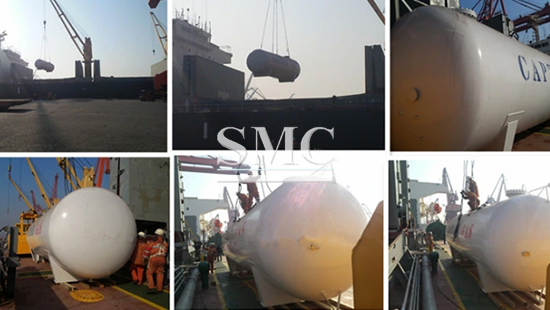

Packaging of Liquefied gas storage tank:



Shanghai Metal Corporation are packed and storaged according to relevant safety codes and standards during packaging and transportation to ensure that the safety and quality of the storage tank are not compromised.

1) Bare or simple packaging

2) LPG tanker, railway transport, sea transport and air transport
