Grade: 16MnDR, 15MnNiDR, 09MnNiDR, SLA 24B, SLA 33A, A516 Gr.55, Gr.60, Gr.65, Gr.70

Standard: GB 3531, JIS G 3126, ASTM A516/A516M

Thickness: 3 - 450 mm

Width: 600 - 5300mm

Length: 2000 - 25000mm

Product Detail | Technical Information | Packaging

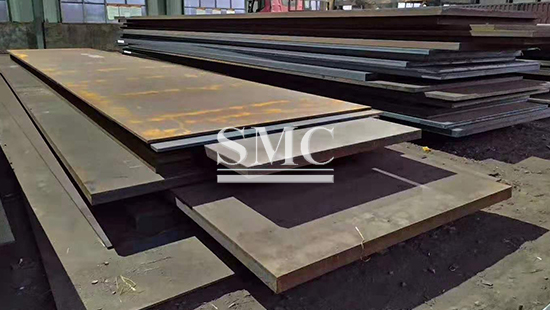

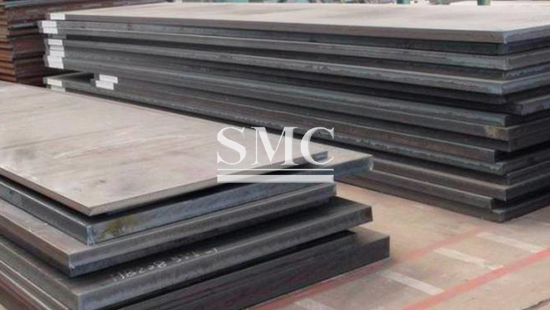

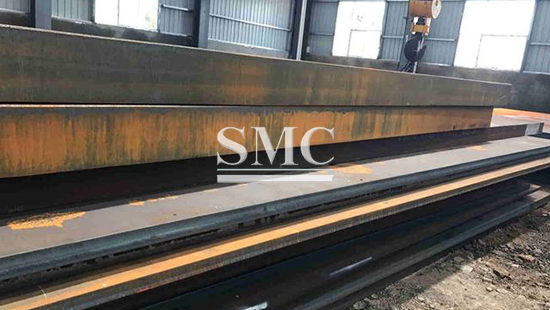

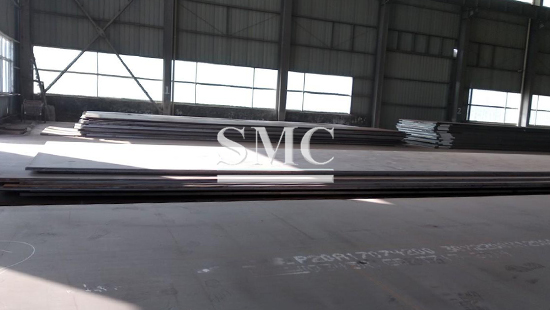

Product Detail

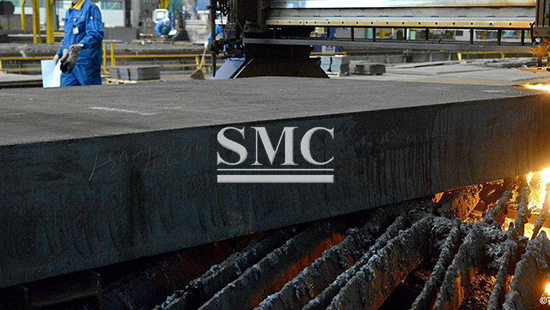

Shanghai Metal Corporation is a low alloy steel plates for low temperature pressure vessels products manufacturer and supplier.

Low alloy steel plates for low temperature pressure vessels have the characteristics of high strength, high toughness, good corrosion resistance, and welding performance. They can maintain good mechanical properties at lower temperatures and resist the erosion of corrosive media such as acid, alkali, and salt.

They can be widely used in industries such as petroleum, chemical, power plants, boilers, etc., for the production of reactors, heat exchangers, separators, spherical tanks, oil and gas tanks, liquefied gas tanks, nuclear reactor pressure shells, boiler steam drums, liquefied petroleum gas cylinders, high-pressure water pipes for hydropower stations, turbine volutes and other equipment and components.

‌If you want to know more about our low alloy steel plates for low temperature pressure vessels products, please feel free to contact us, we will reply you within 24 hours.

Grade: 16MnDR, 15MnNiDR, 09MnNiDR, SLA 24B, SLA 33A, A516 Gr.55, Gr.60, Gr.65, Gr.70

Standard: GB 3531, JIS G 3126, ASTM A516/ A516M

Thickness: 3 - 450 mm

Width: 600 - 5300mm

Width: 600 - 5300mm

Delivery status: N, N+T

Excellent corrosion resistance

Excellent heat workability

Excellent welding performance

High strength and high toughness

Pressure vessel

Oil storage tank

Oil pipeline

Liquefied petroleum gas cylinder

Technical Information of Low Alloy Steel Plates for Low Temperature Pressure Vessels:

Chemical Composition %
Grade	C	Si	Mn	Ni	V	Nb	Al	P	S
16MnDR	≤0.20	0.15-0.50	1.20-1.60	-	-	-	≥0.02	≤0.025	≤0.012
15MnNiDR	≤0.18	0.15-0.50	1.20-1.60	0.20-0.60	≤0.06	-	≥0.02	≤0.025	≤0.012
09MnNiDR	≤0.12	0.15-0.50	1.20-1.60	0.30-0.80	-	≤0.04	≥0.02	≤0.020	≤0.012
A516 Gr.55	0.18-0.26	0.13-0.45	0.55-1.30	-	-	-	-	≤0.035	≤0.035
A516 Gr.60	0.21-0.27	0.13-0.45	0.55-1.30	-	-	-	-	≤0.035	≤0.035
A516 Gr.65	0.24-0.29	0.13-0.45	0.79-1.30	-	-	-	-	≤0.035	≤0.035
A516 Gr.70	0.27-0.31	0.13-0.45	0.79-1.30	-	-	-	-	≤0.035	≤0.035

Mechanical Properties
Grade	Tensile Strength MPa	Yield Strength MPa	Elongation After Fracture A / %
16MnDR	440-620	265-315	21
15MnNiDR	470-620	305-325	20
09MnNiDR	420-570	260-300	23
A516 Gr.55	380-515	205	23
A516 Gr.60	415-550	220	21
A516 Gr.65	450-585	240	19
A516 Gr.70	485-620	260	17

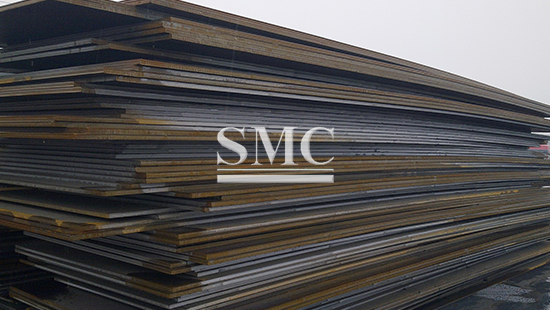

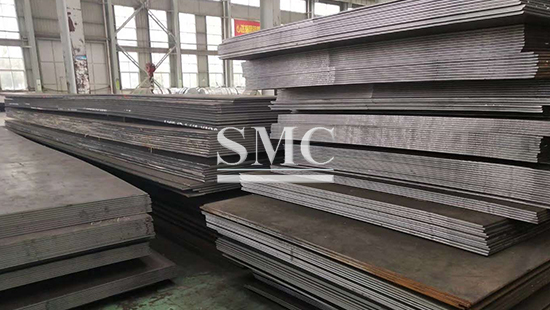

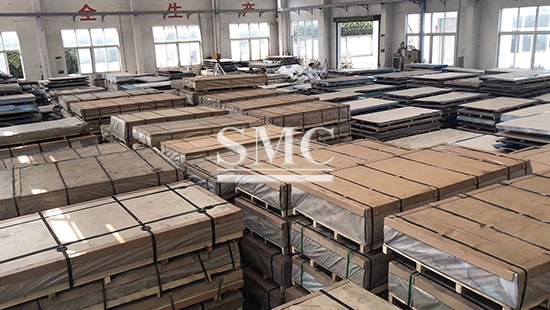

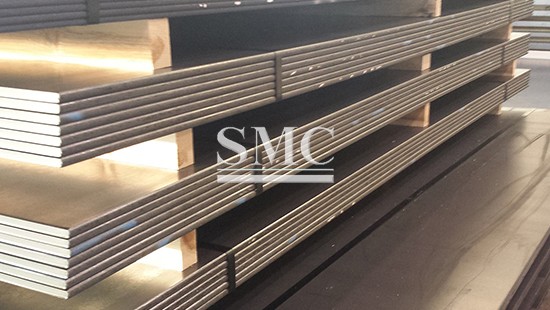

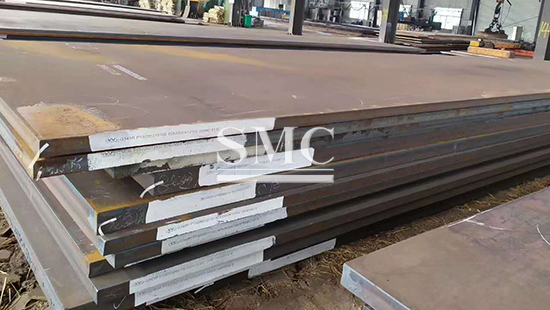

Packaging of Low alloy steel plates for low temperature pressure vessels:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
