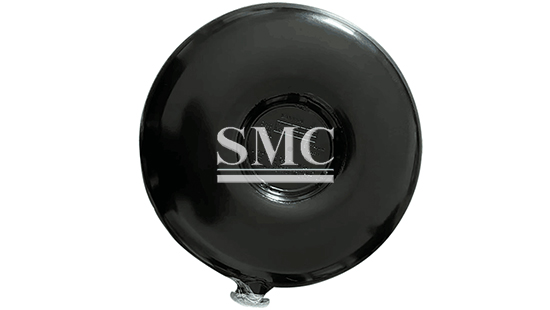

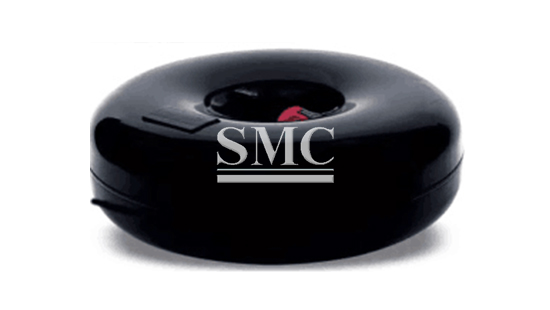

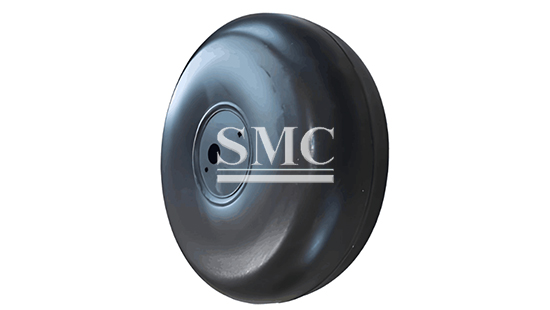

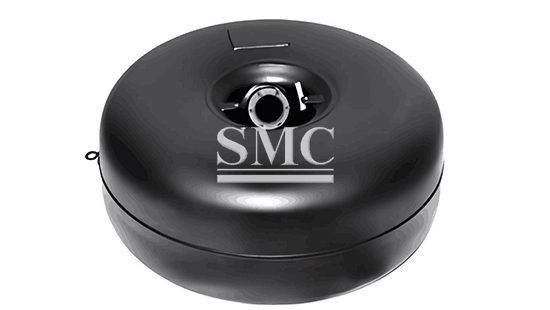

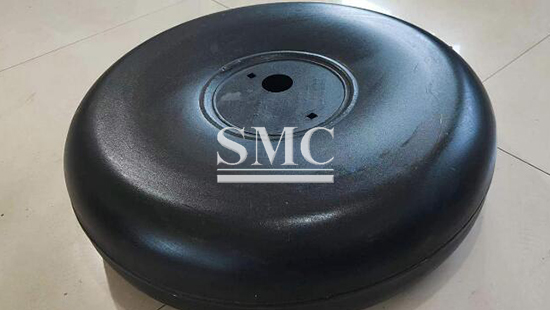

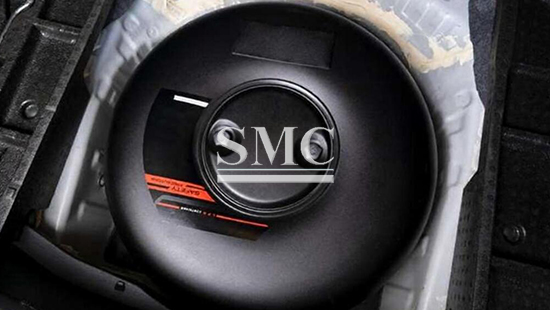

LPG Toroidal Tank
Material: HP295
Volume: 34- 89L
Diameter: 565- 720mm
Design pressure: 1.77MPa
Shanghai Metal Corporation is a leading LPG Toroidal Tank manufacturer and supplier.
LPG Toroidal Tank, short for Liquefied Petroleum Gas Toroidal Tank, is a ring - shaped storage container. Crafted from materials like carbon steel or composite materials, it stands out for its efficient space - saving design, allowing it to fit snugly into vehicle underbodies or other confined areas. This unique shape also ensures even weight distribution, enhancing the stability of vehicles when in use. Its robust construction and multiple safety features make it a reliable choice for storing and transporting LPG. With various capacities available, it is widely used in automotive LPG conversion kits for vehicles, as well as in small industrial and mobile equipment that require LPG supply.
If you want to know more about LPG Toroidal Tank price please feel free to contact us, we will reply you within 24 hours.
Technical Parameters of LPG Toroidal tank:
|
Technical Parameters of LPG Toroidal tank |
|||
|
DIAMETER(mm) |
HEIGHT(mm) |
VOLUME(L) |
WEIGHT(KG) |
|
565 |
180 |
34 |
18.2 |
|
240 |
47 |
20.8 |
|
|
270 |
23 |
22 |
|
|
600 |
180 |
38 |
18.5 |
|
225 |
48 |
20.5 |
|
|
250 |
54 |
22 |
|
|
650 |
180 |
47 |
24.5 |
|
225 |
54 |
29.5 |
|
|
250 |
62 |
31.7 |
|
|
720 |
180 |
54 |
32.7 |
|
240 |
76 |
37.5 |
|
|
270 |
89 |
41.0 |
|

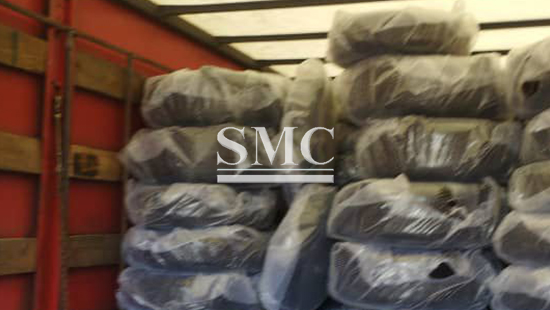

Pcakage of LPG Toroidal tank:
Each LPG toroidal tank is wrapped with woven bags for scratch and collision protection. Wrapped tanks are securely stacked on fumigated wooden pallets, then fully covered and fastened with stretch film to prevent shifting during overseas transit.
Shipping:
We support FCL sea freight and LCL sea freight according to total order volume. Air freight and international courier are available for small‑batch spare‑part orders. Available trade terms include EXW, FOB, CIF. Other terms may be available upon request. Shipping costs are calculated based on cargo gross weight, volume, destination and selected transport method.
Lead Time:
Samples:10 working days
Standard orders: 20-30 working days
Customized orders: 30-35 working days
Q1: Can you produce custom‑spec toroidal tanks? (general)
A: Yes. We support custom diameter, volume and surface treatment based on your technical requirements or drawings.
Q2: What quality documents do you provide? (general)
A: Mill test certificates for HP295 steel, pressure test reports and factory inspection records for each batch.

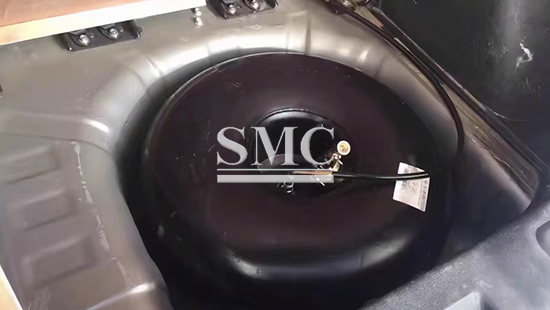

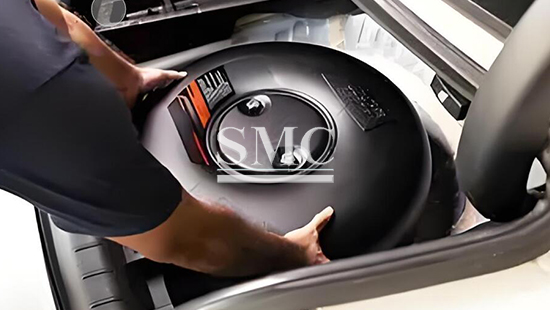

Q3: What is the main advantage of a toroidal LPG tank vs standard cylindrical tanks? (industry)
A: Its ring‑shaped structure fits into the spare‑tire cavity, saving vehicle trunk space and delivering better weight balance.
Q4: What is the design service life of the toroidal LPG tank? (industry)
A: Under normal installation and operating conditions, the design service life reaches 15 years.
Q5: Do you supply matching valves and safety relief valves together with the toroidal tanks? (technical)
A: Yes, we can supply compatible LPG valves and safety relief valves as optional accessories according to customer requirements.
