PVC-U Double Wall Corrugated Drainage Pipe

Material：PVC-U / UPVC

Specification：110mm–630mm

Length：6m or as required

Application: Used for drainage system

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading PVC-U Double Wall Corrugated Drainage Pipe manufacturer and supplier.

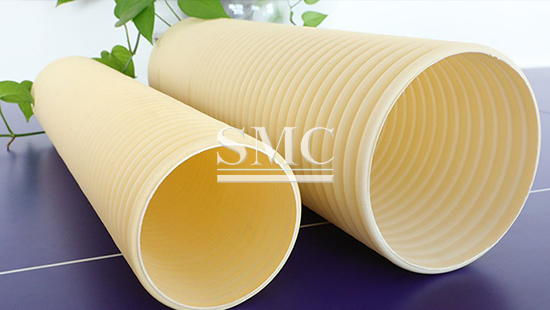

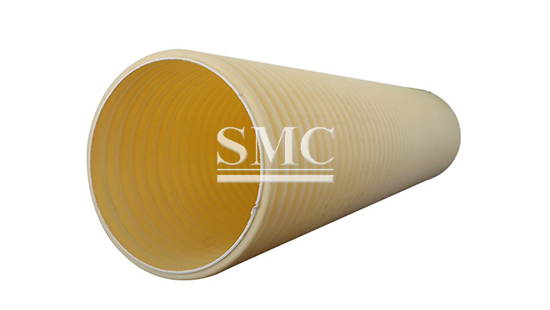

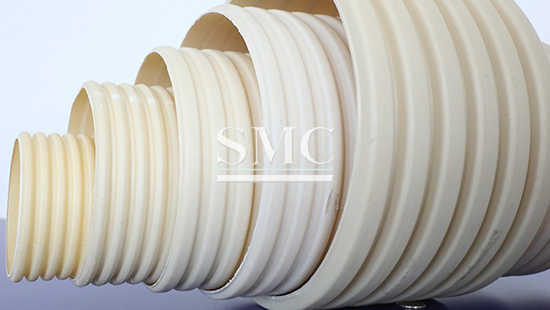

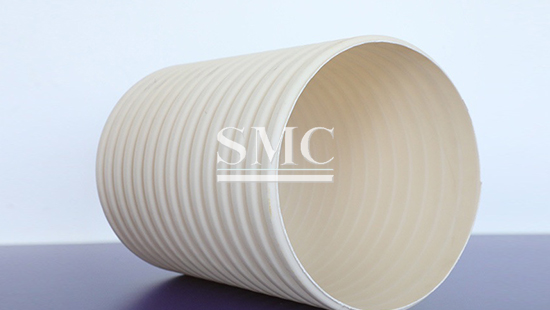

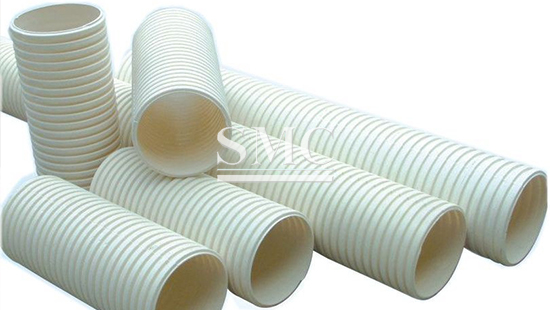

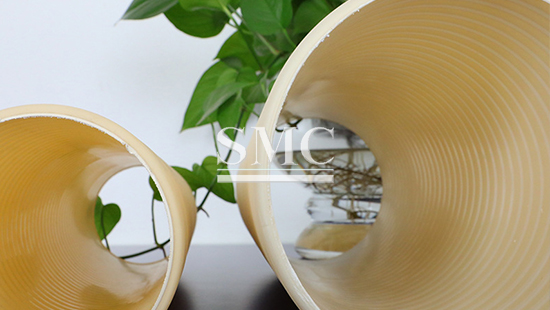

PVC-U double wall corrugated pipe is a kind of special pipe with smooth inner wall, corrugated outer wall and hollow inner and outer wall, which is made of PVC as the main raw material. The pipe has beautiful appearance, strong pressure resistance, small water resistance and acid alkali corrosion resistance. It is easy to install and transport, and has the remarkable advantages of energy saving, material saving and water saving.

If you want to know more about our plastic piping system or PVC-U Double Wall Corrugated Drainage Pipe price please feel free to contact us, we will reply you within 24 hours.

Product Name: PVC-U Double Wall Corrugated Drainage Pipe

Materials: PVC-U / UPVC

Color: White

Size：110mm-630mm

Length：6m or as required

Class: SN4, SN8

Standard: GB/T 18477.1-2007

High ring stiffness, wall use of reasonable hollow ring structure, greatly improving the pipe's ring stiffness

Fluid resistance small, inside sleek, friction less than concrete

Connection sealing well, using elastic seal socket connection, Sealing better than the metal tube and concrete pipe

Bear acid alkali and Sault corrosion

Easy to construction, light weight, enough length, low requirement for environment, lower project cost

Long service life

Sewer and drainage

Frontage drains for terrace and other residential units in housing schemes

Perimeter drains for commercial, industrial units and individual factories

As collector drains in subsoil system in road, highway, open field, stadium, retaining wall or parking space

As collector drains in subsoil system, sewerage treatment plant sludge drying bed under drains

Technical Information of PVC-U Double Wall Corrugated Drainage Pipe:

Inner diameter DN (mm)	Minimum Average Inner Diameter d (mm)	Minimum joints layer thickness e (mm)	Minimum inner layer thickness e 1 (mm)	Jointing length A(mm)
200	195	1.5	1.1	54
300	294	2.0	1.7	64
400	392	2.5	2.3	74
500	490	3.0	3.0	85
600	588	3.5	3.5	96
700	687	4.0	4.0	107
800	785	4.5	4.5	118
1000	985	5	5	140
1200	1185	5	5	162

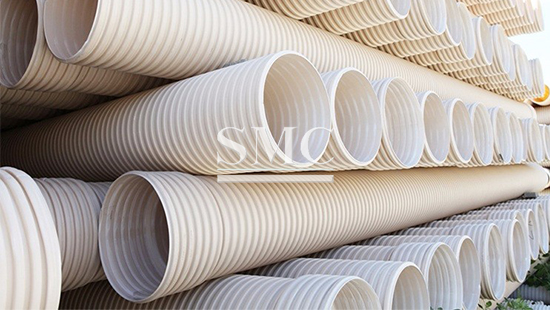

SMC Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
