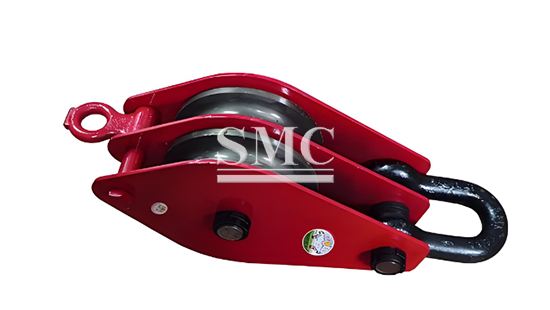

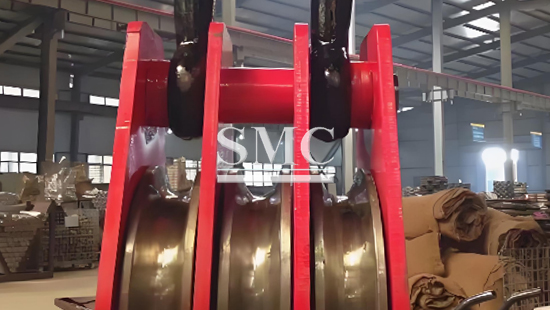

Sheave Pulley Block/ Hoisting Block

Lifting capacity: 0.03T - 320T

Connection type: hook, chain link, hanging ring, hanger

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Sheave Pulley Block/ Hoisting Block with high quality and reasonable price.

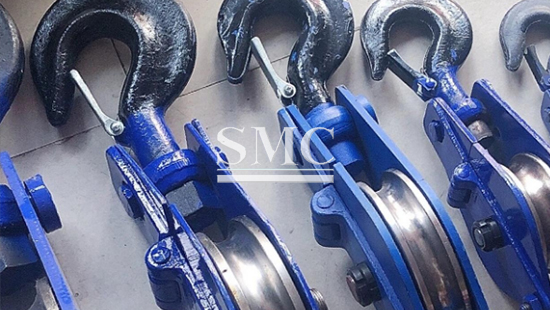

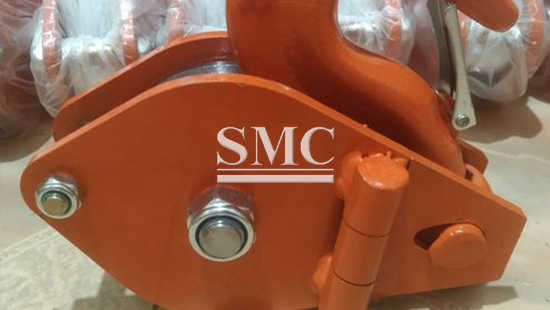

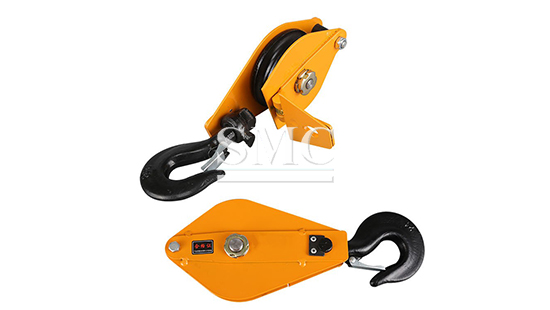

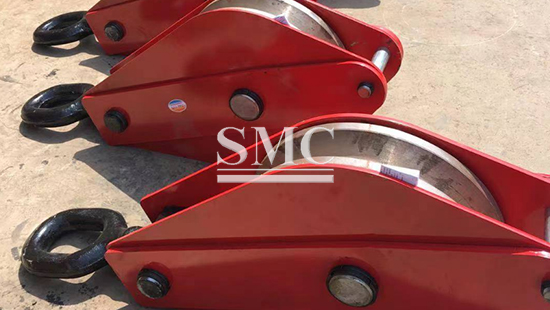

Sheave pulley block, a simple lifting machinery that lifts heavy objects vertically through sprockets or drums. It has a light weight, compact structure, easy to use, and is suitable for simple lifting work during construction. Sheave pulley block can be divided into single pulleys, double pulleys, and multi pulleys according to the number of wheels. According to the connection method between the pulley and the suspended object, it can be divided into four types: hook type pulley, chain link type pulley, hanging ring type pulley, and hanger type pulley. It is mainly used for production equipment in factories, mines, agriculture, electricity, buildings, etc., as well as machine installation and cargo lifting in docks, shipyards, and warehouses.

If you want to know more about Sheave Pulley Block/ Hoisting Block price please feel free to contact us, we will reply you within 24 hours

Pulley material: casting iron, casting steel, hot rolled steel
Body technology: forged

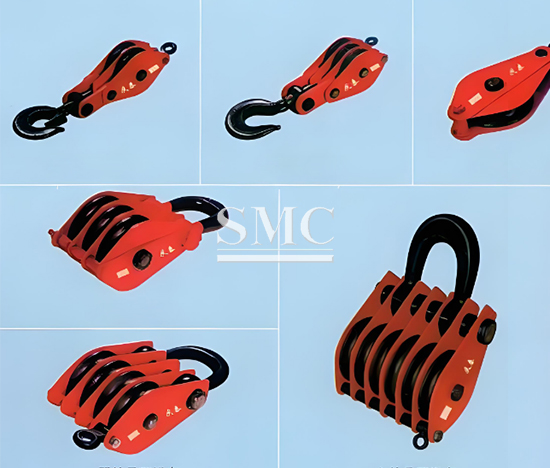

Pulley type: 1 pulley, 2 pulley, 3 pulley till 10 pulley

1. The pulley is made of high-quality steel with thick lifting hooks and rings, which increases its load-bearing capacity and ensures safety and reliability.
2. The pulley is made by high-temperature quenching, it has high strength, good durability, and smooth and smooth surface.
3. The hook is designed with self-locking device and more safe.

1. Factory equipment
2. Power plant
3. Mine machinery
4. Agriculture and electricity
5. Docks and port
6. Warehouse crane

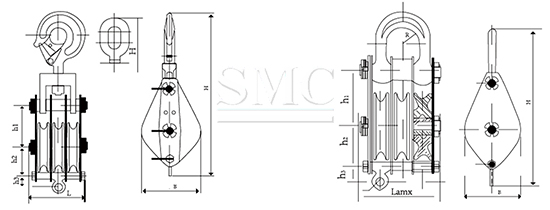

Technical Information of Sheave Pulley Block/ Hoisting Block:

三轮起重滑车技术参数 THREE-SHEAVE PULLEY SPECIFICATIONS
产品Item	型号 Model	额定荷载 WLL (T)	实验载荷 Test Load (kn)	外形尺寸 DIMENSIONS					绳径 Rope Dia		钩口环腔尺寸 HOOK HATCH				重量 Weight (kg)
				H	H1	B	L/max	Ø	suit	max	D	O	R1	R
				mm							mm
吊钩链环型三轮滑车 Three-sheave pulley with hook	CLG3-3.2	3.2	51.2	456	435	116	127	14	7.7	11	50	≥37	21	—	9.87
	CLL3-3.2	3.2	51.2	456	435	116	127	14	7.7	11	50	≥37	21	—	9.09
	CLG3-5	5	80	575	555	152	152	20	11	14	60	≥42	26.5	—	16.71
	CLL3-5	5	80	575	555	152	152	20	11	14	60	≥42	26.5	—	15.68
	CLG3-8	8	128	710	680	176	180	24	12.5	15.5	75	≥56	33.5	—	28.65
	CLL3-8	8	128	710	680	176	1480	24	12.5	15.5	75	≥56	33.5	—	26.47
	CLG3-10	10	160	810	790	212	245	28	15.5	18.5	85	≥61	37.5	—	49.09
	CLL3-10	10	160	810	790	212	245	28	15.5	18.5	85	≥61	37.5	—	46.82
	CLG3-16	16	224	960	920	230	233	32	17	20	106	≥81	50	—	74.28
	CLL3-16	16	224	960	920	230	233	32	17	20	106	≥81	50	—	67.67
	CLG3-20	20	280	1080	1030	280	258	36	20	23	118	≥90	52.5	—	105.14
	CLL3-20	20	280	1080	1030	280	258	36	20	23	118	≥90	—	—	94.63
	CLG3-32	32	512	1480	1400	580	240	—	35	38	140	≥106	—	—	300.00
	CLL3-32	32	512	1480	1400	580	240	—	35	38	140	≥106	—	—	290.00
吊环型三轮滑车 Three-sheave pulley with ring	CLD3-32	3.2	51.2	330	—	116	128	14	7.7	11	—	—	—	23.5	9.24
	CLD3-5	5	80	435	—	152	156	20	11	14	—	—	—	28	15.35
	CLD3-8	8	128	515	—	176	185	24	12.5	15.5	—	—	—	33	25.27
	CLD3-10	10	160	610	—	212	216	28	15.5	18.5	—	—	—	40	45.32
	CLD3-16	16	224	680	—	236	233	32	17	20	—	—	—	42	58.17
	CLD3-20	20	280	770	—	280	266	36	20	23	—	—	—	47	85.59
	CLD3-32	32	448	945	—	364	305	48	26	28	—	—	—	52	187.86
	CLD3-50	50	700	1220	—	452	369	56	31	35	—	—	—	64	359.98

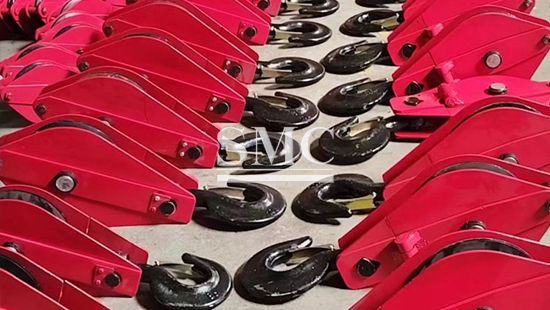

Packaging of Sheave Pulley Block/ Hoisting Block:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
