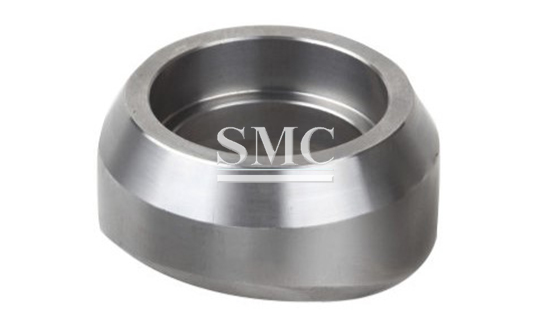

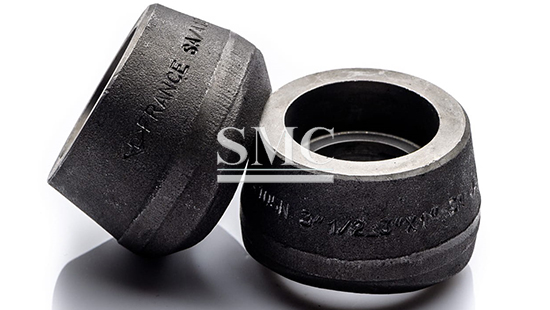

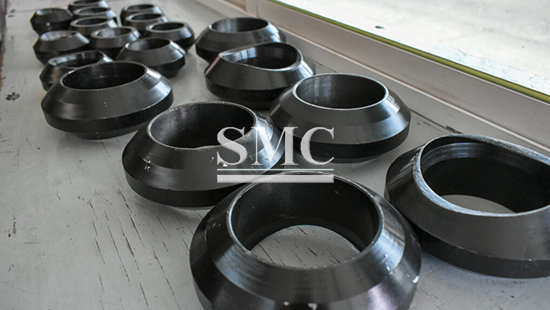

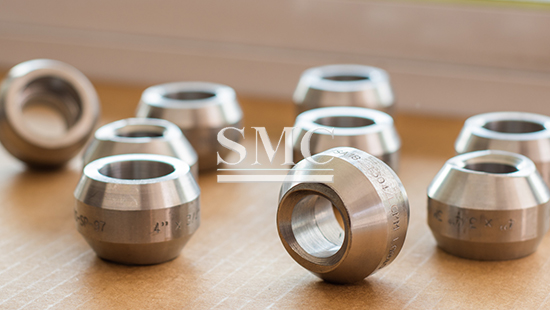

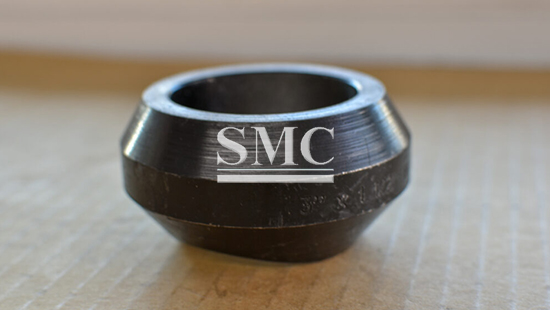

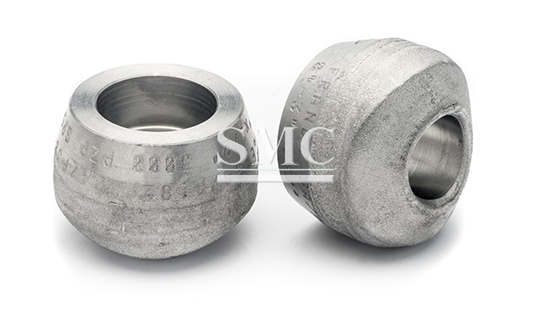

Sockolet
Material: Carbon steel, alloy steel,nickel-based alloys
Connection form: Socketweld
Shanghai Metal Corporation is a professional manufacturer and supplier of Sockolet Panel with high quality and reasonable price.
Sockolet utilizes the basic weldolet, however the branch affixes by way of a socket inside the olet. The bore matches the outlet bore, and the existence of a counter bore roughly the size of the OD of the outlet provides a socket where the pipe can sit, facilitating installation and welding. The Sockolet is considered a socket fitting, and manufactured in 3000LB, 6000LB and 9000LB classes.
If you want to know more about Sockolet price please feel free to contact us, we will reply you within 24 hours

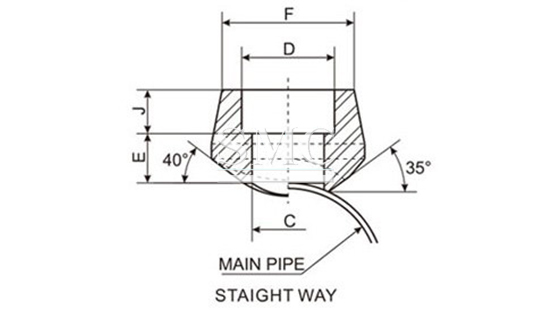

Technical Information of Sockolet:
|
Sockolet Dimesions Table |
|||||
|
Out-Let |
Staight Way |
||||
|
Pipe |
C |
D |
F |
J |
E |
|
NPS |
|
|
|
(Min.) |
(Min.) |
|
|
3000LB |
|
|
|
|
|
1/8" |
--- |
--- |
--- |
--- |
--- |
|
1/4" |
11.5 |
14.2 |
22 |
9.7 |
10.4 |
|
3/8" |
14.5 |
17.6 |
25.9 |
9.7 |
12.7 |
|
1/2" |
16.5 |
21.8 |
31.4 |
9.7 |
16 |
|
3/4" |
21.5 |
27.2 |
37.1 |
12.7 |
16 |
|
1" |
27.2 |
33.9 |
45.5 |
12.7 |
22.4 |
|
1-1/4" |
36 |
42.7 |
57 |
12.7 |
22.4 |
|
1-1/2" |
42 |
48.8 |
64 |
12.7 |
23.9 |
|
2" |
53 |
61.2 |
76 |
15.8 |
23.9 |
|
2-1/2" |
65 |
73.9 |
92 |
15.8 |
25.4 |
|
3" |
80 |
89.8 |
109.2 |
15.8 |
30.2 |
|
4" |
104 |
115.2 |
140 |
19.1 |
30.2 |
|
(1)Dimensions in Millimeters. |
|||||
|

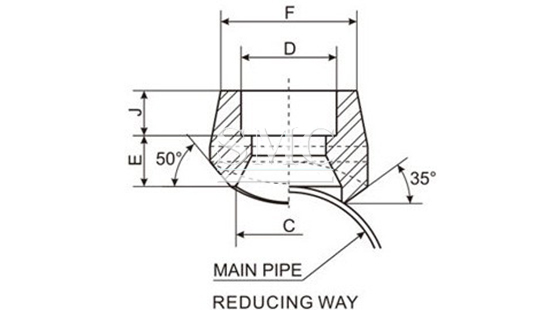

Sockolet Dimesions Table |
||||||||||
|
Out-Let |
Reducing Way |
|||||||||
|
Pipe |
C |
|
D |
|
F |
|
J |
|
E |
|
|
NPS |
|
|
|
|
|
|
(Min.) |
|
(Min.) |
|
|
|
3000 |
6000 |
3000 |
6000 |
3000 |
6000 |
3000 |
6000 |
3000 |
6000 |
|
1/8" |
13.7 |
--- |
10.8 |
--- |
22 |
--- |
9.7 |
--- |
10.4 |
--- |
|
1/4" |
13.7 |
--- |
14.2 |
--- |
22 |
--- |
9.7 |
--- |
10.4 |
--- |
|
3/8" |
19.1 |
--- |
17.6 |
--- |
25.9 |
--- |
9.7 |
--- |
12.7 |
--- |
|
1/2" |
21.3 |
16.6 |
21.8 |
21.8 |
31.4 |
38 |
9.7 |
9.7 |
16 |
23.9 |
|
3/4" |
26.7 |
21.2 |
27.2 |
27.2 |
37.1 |
44 |
12.7 |
12.7 |
16 |
25.4 |
|
1" |
33.4 |
27 |
33.9 |
33.9 |
45.5 |
57 |
12.7 |
12.7 |
22.4 |
28.7 |
|
1-1/4" |
42.2 |
35.8 |
42.7 |
42.7 |
57 |
54 |
12.7 |
12.7 |
22.4 |
30.2 |
|
1-1/2" |
48.3 |
41.2 |
48.8 |
48.8 |
64 |
76 |
12.7 |
12.7 |
23.9 |
31.8 |
|
2" |
60.3 |
51.6 |
61.2 |
61.2 |
76 |
92 |
15.8 |
15.8 |
23.9 |
36.6 |
|
2-1/2" |
73.2 |
--- |
73.9 |
--- |
92 |
--- |
15.8 |
--- |
25.4 |
--- |
|
3" |
88.9 |
--- |
89.8 |
--- |
109.2 |
--- |
15.8 |
--- |
30.2 |
--- |
|
4" |
114.3 |
--- |
115.2 |
--- |
140 |
--- |
19.1 |
--- |
30.2 |
--- |

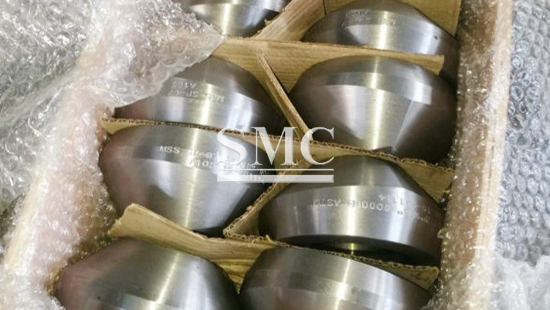

Packaging of Sockolet:
