Material: 20Mn2A, 20MnV, 40Cr.

Finish: Plain, Electro-galvanized, Hot-dip galvanized

Load class: 1.3T-45T

Length: 85-1200mm

Product Detail | Technical Information | Packaging

Product Detail1

Shanghai Metal Corporation is a professional manufacturer and supplier of Spherical Head Anchor with high quality and reasonable price.

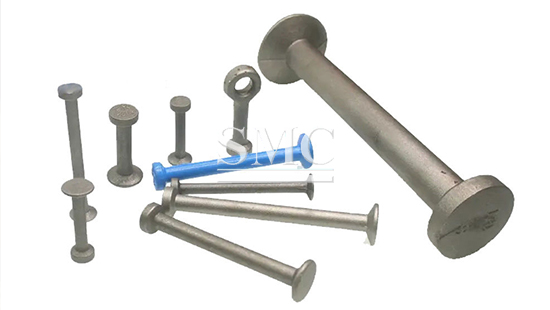

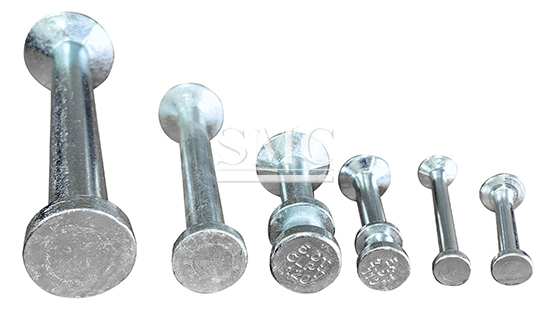

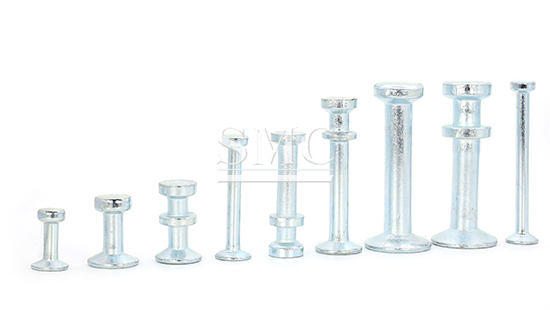

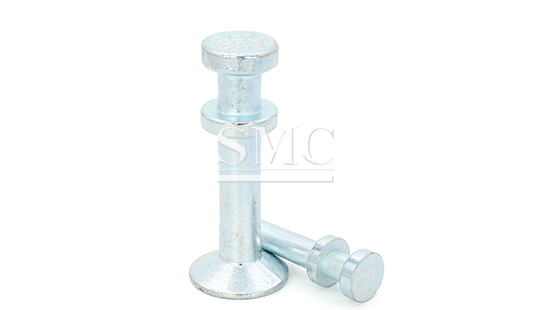

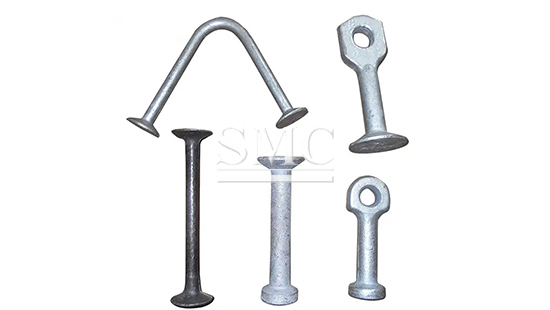

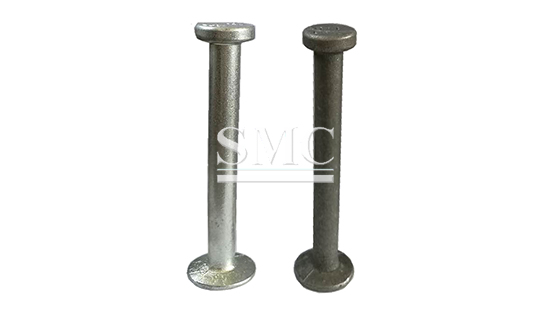

Spherical Head Anchor is core load-bearing connecting components in the field of architectural and industrial precast elements. Their primary function is to provide reliable load-bearing points for hoisting, transportation, and installation by being pre-embedded in concrete components. They also serve auxiliary functions such as fixation and positioning. Their application must strictly match the component type, load capacity, and construction technology.

If you want to know more about our Spherical Head Channel price, please feel free to contact us, we will reply you within 24 hours.

1. Standard: EN, ISO, ANSI
2. Process:Forged
3. Load Capacity:1.3T-45T
4. Surface Treatment: Plain, Electro-galvanized, Hot-dip galvanized

1. Safe, Fast, and Efficient
2. Wear-resistant and Durable Lifting Heads
3. 10 Load Capacities, Ranging from 1.3 to 45 Tons
4. Lift all kinds of prefabricated components

1. Lifting precast components during production.
2. On-site hoisting and precise positioning of precast elements.
3. Temporary fixation of formwork and supports.
4. Reserved anchoring for attachments.

Technical Information of Spherical Head Anchor:

Spherical Head Anchor,as the "lifeline" of precast components, their technical parameters are directly related to construction safety and project quality. During selection, comprehensive consideration should be given to the component type, weight, service environment and construction technology to ensure that the load capacity and material strength of the lifting pins match the concrete performance.

technical

Dimensions of spherical head anchors
Load class	Article name mill finish	Order no. 0735.010-	Article name hot-dip galvanized	Order no. 0735.-	I [mm]	k [mm]	Da [mm]
13	6000- 1,3-0085	00006	6000- 1,3-0085 FV	200-00071	85	10	60
	6000- 1,3-0120	00007	6000- 1,3-0120 FV	200-00072	120
	6000- 1,3-0240	00008	6000- 1,3-0240 FV	200-00073	240
25	6000- 2,5-0120	00019	6000- 2,5-0120 FV	200-00084	120	11	74
	6000-2,5-0170	00020	6000-2,5-0170 FV	200-00085	170
	6000-2,5-0280	00022	6000-2,5-0280 FV	200-00087	280
50	6000- 5,0-0240	00040	6000- 5,0-0240 FV	010-00174	240	15	94
	6000- 5,0-0340	00041	6000- 5,0-0340 FV	200-00104	340
	6000- 5,0-0480	00042	6000-5,0-0480 FV	200-00105	480
75	6000-7,5-0200	00050	6000- 7,5-0200 FV	200-00111	200	15	118
	6000-7,5-0300	00051	6000- 7,5-0300 FV	010-00188	300
	6000-7,5-0540	00052	6000- 7,5-0540 FV	200-00113	540
100	6000-10,0-0170	00058	6000-10,0-0170 FV	200-00119	170	15	118
	6000-10,0-0340	00061	6000-10,0-0340 FV	200-00121	340
	6000-10,0-0680	00062	6000-10,0-0680 FV	200-00123	680
150	6000-15,0-0300	00066	6000-15,0-0300 FV	200-00127	300	15	160
	6000-15,0-0400	00067	6000-15,0-0400 FV	200-00128	400
	6000-15,0-0840	00068	6000-15,0-0840 FV	200-00129	840
200	6000-20,0-0340	00074	6000-20,0-0340 FV	200-00134	340	15	160
	6000-20,0-0500	00075	6000-20,0-0500 FV	200-00135	500
	6000-20,0-1000	00076	6000-20,0-1000 FV	200-00136	1000
320	6000-32,0-0320	00080	6000-32,0-0320 FV	200-00140	320	23	214
	6000-32,0-0700	00082	6000-32,0-0700 FV	200-00142	700
	6000-32,0-1200	00083	6000-32,0-1200 FV	200-00143	1200
450	6000-45,0-0500	00197	not available	-	500	23	214
450	6000-45,0-1200	00159	not available	-	1200	23	214
Other anchor lengths are available on request.

Packaging of Spherical Head Anchor:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

packaging
