Forming Machine

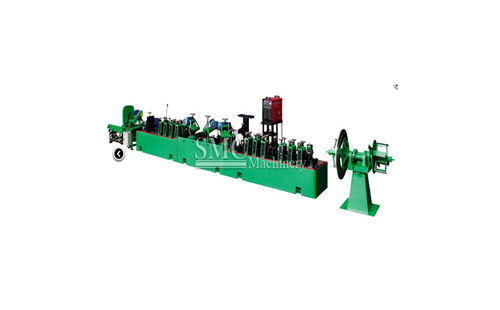

Stainless Steel Pipe Making Machine

    Outer diameter: 5 to 219mm


    Wall thickness: 0.2 to 4.0mm

Introduction of Stainless Steel Pipe Making Machine:

Stainless steel pipe making machine is designed for manufacturing stainless steel straight welded pipe for metallurgy, construction, transportation, and machinery and vehicle industries. To be specific, the stainless steel pipe production line can produce round pipe, square and rectangular tube, as well as section steels through cold rolled forming and high frequency welding technology.

This pipe making machine adopts long steel strip as the material to manufacture steel pipes according to requested size by cold rolled forming and argon arc welding method.


  • Structure of Stainless Steel Pipe Making Machine:

    1) Double Side Uncoiler

    2) 3-Stage Roller Tube/Pipe Making machine

    A. Forming

    B. Welding

    C. Sizing


  • 3) Welding Seam Grinding

    4) Auto Cutter Unit

    5) Electric Control System Equipment

    6) Forming Roller

    7) Auto Unloading Platform


Production Flow Chart:


Unfolding strip → Branding →Forming →Welding →grinding →Sizing →Straightening → Length fixing →Cutting →Un loading.

First, the coil is set onto the uncoiler, and the steel belt is loosened and rolled into the storage cage, before being transported into the forming machine.

The steel belt is first flattened out, and is processed through rollers to squeeze it to the desired pipe diameter.

The machine then welds, straightens and cuts the pipe to the length set in the automated cut-off machine, and transports the finished pipe to the run out table, where quality inspection can be performed.



Technical Parameters of Stainless Steel Pipe Making Machine:
