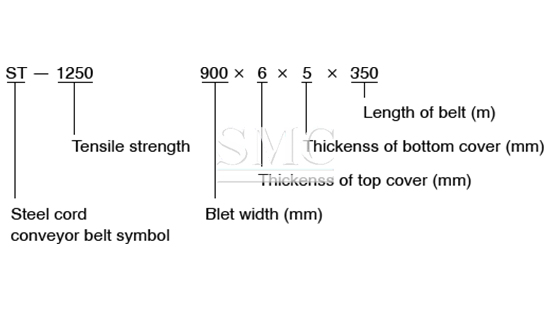

1. Key To Symbols(As shown)

2. Wire Ropes Structure: K6×7+1WS; K6×19+1WS; K6×19W+1WS;

3. Production Range：Tensile strength : 630-5,400N/mm；Max. Belt width : 2,400mm

If you have customized design of steel cord rubber belt, just contact us for more communication.

1. High tensile strength:The belts are suitable for large span,long distance transportation of materials

2. Small elongation in use:The belts need only a very short take-up stroke distance.

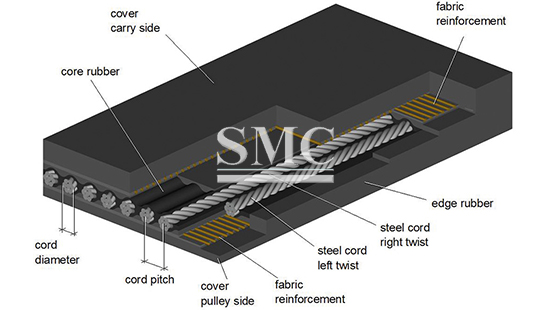

3. Small diameter of drive pulley:The bely body has a layer of longitudinally arranged steel cords as its skeleton,and thus is resistant to flex fatigue.Therefore,drive pulley of smaller diameter can be used to make the equipment smaller.

4.High adhesion between rubber and steel cord:The steel cords are coated with zinc on their surface,and also the rubber used has the property of qood adhesion with steel cords.Therefore,the rubber is tighrly adhered to the steel cords and is resistant to shock and difficult to drop,so the rubber belts are long in life.

5.Even tension of steel cords:Out of our advanced techniques in manufacturing,the steel cords are very evenly arranged and have the same tension,so the belts are well balanced in running and difficult to run awry.

6.Inspection of the belt with X-rays:Users can X-rays to inspect damages of the skeleton steel cords on the conveyor machines to prevent accidents from happening.

1. Available belt strength ranges from 630N/mm up to 5,400N/mm covering a variety of applications.

2. Realize minimum take up distance, best suited for long distance or other specialized conveyors with short transitions, small pulleys and yet high throughput rates.

3. Belt runs true and prevent spillage.

1. Steel cord conveyor belts are widely used in distribution areas, cement, coal mines, quarries, mines, power plants, metallurgy, ports and chemical industries.
