Material: H40，J55，N80，C90，T95，P110，Q125，HCP110.

Color: Green, Blue, Red.

Standard: API SPEC 5CT, ISO 377, ISO 404, ASTM A941.

Product Detail | Technical Information | Packaging

Product Detail

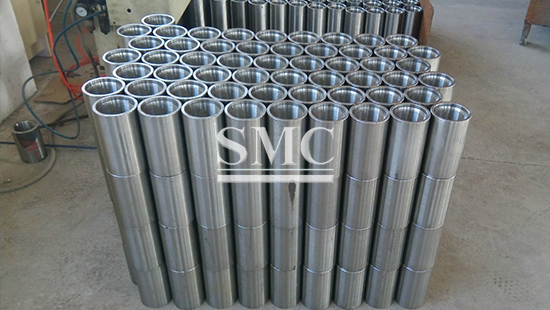

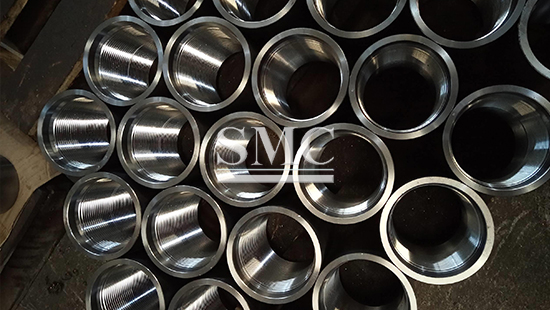

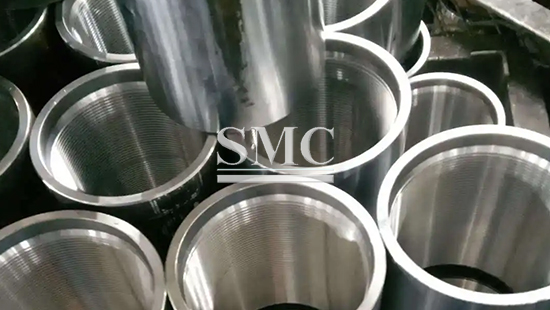

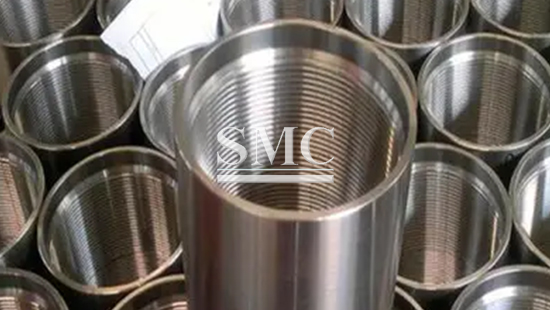

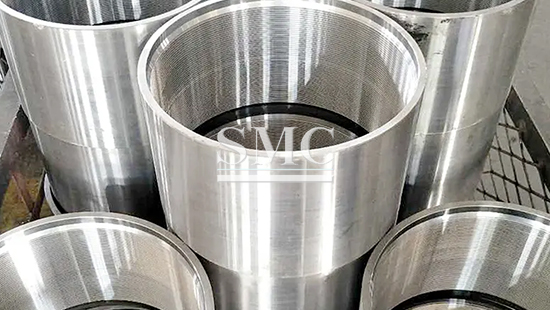

Shanghai Metal Corporation is a professional manufacturer and supplier of Tubing Casing Coupling with high quality and reasonable price.

Our Tubing Casing Couplings, meticulously crafted from premium-grade high-strength steel, embody unparalleled durability and steadfast reliability across a broad range of operating conditions. Their robust construction ensures resilience against harsh environments, including extreme pressures, corrosive substances, and temperature fluctuations, safeguarding critical tubing and casing systems in oil and gas exploration. Engineered to withstand diverse stress loads, these couplings gracefully integrate casing strings, tubing strings, and other vital components within the intricate network of modern drilling operations. Not only do they facilitate the seamless connection and operation of casing and tubing systems, but they also contribute to the overall stability and longevity of the drilling infrastructure, underpinning the efficiency that has become vital to our daily lives and industrial operations.

If you want to know more about Tubing Casing Coupling price please feel free to contact us, we will reply you within 24 hours

Material: High-Strength Steel H40，J55，N80，C90，T95，P110，Q125，HCP110,Etc

Surface Treatment: Anti-corrosion treatment is applied to the exterior, and phosphating treatment is applied to the internal surface of the ferrule

Dimensions: Customizable to accommodate various diameters and load requirements

Load Capacity: High, suitable for supporting heavy oil processing equipment

Corrosion-resistant surface treatment ensures long-term durability and minimizes maintenance costs

High load capacity allows for the secure installation of multiple oil processing components

Weather-proof design withstands extreme temperatures, rain, snow, and other harsh environmental conditions

Easy installation and maintenance procedures minimize downtime and enhance overall operational efficiency

Energy Distribution: Supports equipment in energy transmission networks

Oil Industry: Used in oil transportation, screening, and filtration systems

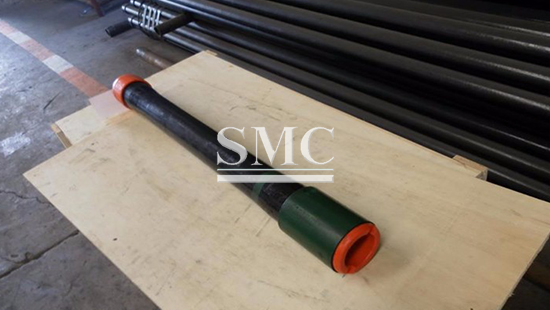

Link: Link oil casings of different or the same caliber

Technical Information of Tubing Casing Coupling:

Label 1	Size mm	Outside diameter mm			Minimum Length NL mm			Diameter of counterbore Q mm		Width of Bearing face B mm		Mass kg
specifications	Outside Diameter D	BTC Regular w b.c	BTC Special Clearance .d W .c	Round	BTC	SIC	LTC	BTC	Round	BTC	Round	BTC		Round
specifications	Outside Diameter D	BTC Regular w b.c	BTC Special Clearance .d W .c	Round	BTC	SIC	LTC	BTC	Round	BTC	Round	Regular	Special Clearance	STC	LTC
1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
41/2	11430	127.00	133.35	133.35	225.42	158.75	177.80	117.86	116.68	6.36	7.14	6.89	3.48	5.24	5.96
5	127.00	141.30	147.32	147.32	231.78	165.10	196.85	130.56	129.38	7.14	7.14	8.38	4.00	6.43	7.86
51/2	139.70	153.67	160.02	160.02	234.95	171.45	203.20	143.26	142.08	7.14	6.35	9.30	4.47	7.34	8.92
65/8	168.28	187.71	177.80	187.71	244.48	184.15	222.25	171.83	170.66	6.35	6.35	11.01	5.65	9.12	1134
7	177.80	200.03	187.32	200.03	254.00	184.15	228.60	181.36	180.18	7.94	7.94	13.98	6.28	10.88	13.92
75/8	193.68	215.90	206.38	215.90	263.52	190.50	234.95	197.23	197.64	7.94	5.56	15.82	9.29	12.16	15.63
85/8	219.08	244.48	231.78	244.48	269.88	196.85	254.00	222.63	222.04	9.52	6.35	20.86	10.80	15.62	21.67
95/8	244.48	269.88	257.18	269.88	269.88	196.85	266.70	248.03	248.44	9.52	6.35	23.16	12.02	17.85	25.45
2003/4	273.05	298.45	285.75	298.45	269.88	203.20	---	276.61	277.02	9.52	6.35	25.74	13.39	20.58	---
2013/4	298.45	323.85	---	323.85	269.88	203.20	---	302.01	302.42	9.52	6.35	28.03	---	22.43	---
2033/8	339.72	365.12	---	365.12	269.88	20.3.20		343.28	343.69	9.52	5.56	31.77	---	25.42	---
16	406.40	431.80	---	431.80	269.88	228.60	---	410.31	411.96	9.52	5.56	40.28	---	34.33	---
185/8	473.08	508.00	---	508.00	269.88	228.60	---	476.99	478.63	9.52	5.56	62.68	---	53.33	---

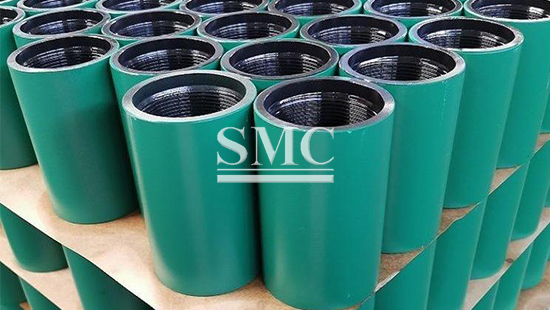

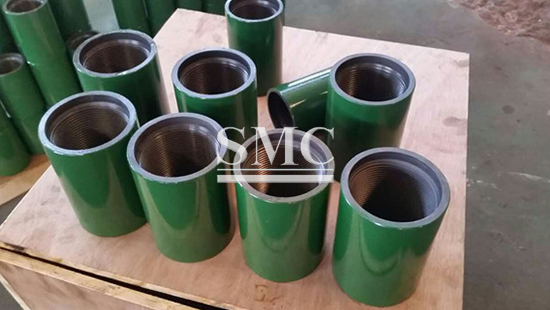

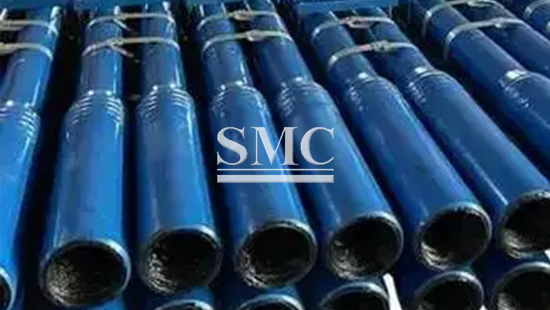

Packaging of Tubing Casing Coupling:

Shanghai Metal Corporation ensures that all Tubing Casing Coupling are packaged and labeled in accordance with industry standards and customer specifications. We prioritize the protection of pipes during transportation and storage, utilizing sturdy packaging materials and clear labeling for easy identification. Custom packaging solutions are also available upon request.

1)Individual Packaging.

2)Carton Boxes.

3)Wooden Crates or Pallets.

4)Anti-Rust Measures.
