Electric Protection System

Cable Penetration Sealing Frame

    Material: AISI316, Aluminum Alloy 6061,Steel Q235,DuPont Zytel 70G33L,DuPont Teflon PTFE and Bayer Makrolon 2405 etc.


    Advantage: Excellent Corrosion Resistance, High Strength and Hardness, Good Heat Resistance, Easy to Process and Mold.


    Type: F FRAME,F FRAME,FYJ FRAME,FF FRAME,FH FRAME,FS FRAME.

Shanghai Metal Corporation is a leading Cable Penetration Sealing Frame manufacturer and supplier.

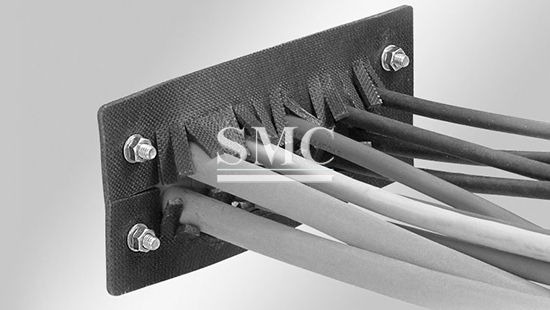

These Cable Penetration Sealing Frames are designed to create a perfect seal where cables pass through walls. They effectively prevent the intrusion of water, dust, and other foreign substances, maintaining a clean and safe environment for the cables. In addition, they play a crucial role in fire prevention, blocking the spread of fire and smoke in case of an emergency.Engineered to meet the diverse needs of different projects, these sealing frames can be customized to fit various cable diameters and installation requirements. They are not only easy to install but also convenient for future maintenance and cable replacement.


If you want to know more about our Cable Penetration Sealing Frames, please feel free to contact us. We will reply to you within 24 hours.



Technical of Cable Penetration Sealing Frame:



F FRAME
F
型方形框架在设计时,可根据电缆 / 管道安装需要沿水平方向和垂直方向将框架扩展成多种组合框架。材料可根据需要
选用低碳钢、不锈钢和铝等。
The square basic frame F is designed to fit different kinds of frames according to the horizontal and vertical directions for cable/pipe
installations. Materials can be used such as low-carbon steel, stainless steel and aluminum etc.




型号
Type

框架开孔数
Opening

单孔密封尺寸
Packing space
hxw(mm)

外形尺寸
External
dimensions
H(mm)
W(mm)

重量
Weight(kg)

型号
Type

框架开孔数
Opening

单孔密封尺寸
Packing space
hxw(mm)

外形尺寸
External
dimensions
H(mm)
W(mm)

重量
Weight(kg)




F1×1

1

60×60

120

80

1.7

F2+2×4

8

60×120

240

530

14.9



F2×1

1

60×120

120

140

2.3

F2+2×5

10

60×120

240

660

18.4



F2×2

2

60×120

120

270

4.0

F2+2×6

12

60×120

240

790

21.9



F2×3

3

60×120

120

400

5.7

F2+2+2×1

3

60×120

340

140

5.6



F2×4

4

60×120

120

530

7.3

F2+2+2×2

6

60×120

360

270

12.0



F2×5

5

60×120

120

660

9.0

F2+2+2×3

9

60×120

360

400

17.3



F2×6

6

60×120

120

790

10.5

F2+2+2×4

12

60×120

360

530

22.4



F2+2×1

2

60×120

230

140

4.0

F2+2+2×5

15

60×120

360

660

27.6



F2+2×2

4

60×120

240

270

8.0

F2+2+2×6

18

60×120

360

790

32.8



F2+2×3

6

60×120

240

400

11.5

F3×1

1

120×60

180

80

2.3



F4×1

1

120×120

180

140

3

F6+6×2

4

180×120

480

270

11.3



F4×2

2

120×120

180

270

4.8

F6+6×3

6

180×120

480

   400

15.8



F4×3

3

120×120

180

400

6.8

F6+6×4

8

180×120

480

   530

20.3



F4×4

4

120×120

180

530

8.7

F6+6×5

10

180×120

480

   660

24.8



F4×5

5

120×120

180

660

10.7

F6+6×6

12

180×120

480

   790

28.7



F4×6

6

120×120

180

790

12.3

F6+6+6×1

3

180×120

700

140

8.8



F4+4×1

2

120×120

350

140

5

F6+6+6×2

6

180×120

720

   270

17.3



F4+4×2

4

120×120

360

270

9.6

F6+6+6×3

9

180×120

720

400

24.4



F4+4×3

6

120×120

360

400

13.5

F6+6+6×4

12

180×120

720

   530

31.2



F4+4×4

8

120×120

360

530

17.4

F6+6+6×5

15

180×120

720

660

38.3



F4+4×5

10

120×120

360

660

21.4

F6+6+6×6

18

180×120

720

   790

45.4



F4+4×6

12

120×120

360

790

24.9

F7×1

1

240×60

300

80

3.3



F4+4+4×1

3

120×120

520

140

7.1

F8×1

1

240×120

300

   140

3.9



F4+4+4×2

6

120×120

540

270

14.3

F8×2

2

240×120

300

   270

6.5



F4+4+4×3

9

120×120

540

400

20

F8×3

3

240×120

300

   400

9



F4+4+4×4

12

120×120

540

530

26.4

F8×4

4

240×120

300

   530

11.5



F4+4+4×5

15

120×120

540

660

31.5

F8×5

5

240×120

300

   660

14.1



F4+4+4×6

18

120×120

540

790

37.3

F8×6

6

240×120

300

   790

14.9



F5×1

1

180×60

240

80

2.9

F8+8×1

2

240×120

590

   140

7.2



F6×1

1

180×120

240

140

3.4

F8+8×2

4

240×120

600

270

12.9



F6×2

2

180×120

240

270

5.6

F8+8×3

6

240×120

600

   400

18



F6×3

3

180×120

240

400

7.9

F8+8×4

8

240×120

600

   530

23.1



F6×4

4

180×120

240

530

10.1

F8+8×5

10

240×120

600

   660

25.7



F6×5

5

180×120

240

660

12.4

F8+8×6

12

240×120

600

   790

28.2



F6×6

6

180×120

240

790

14.3

F8+8+8×1

3

240×120

890

   140

11.7



F6+6×1

2

180×120

470

140

6.1

F8+8+8×2

6

240×120

900

   270

23.4



Packaging of Cable Penetration Sealing Frame:
