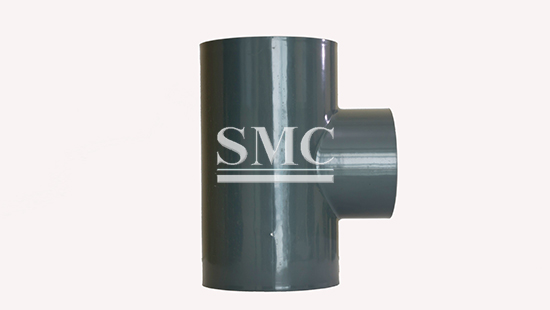

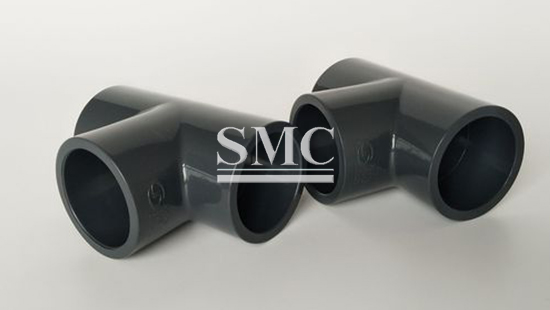

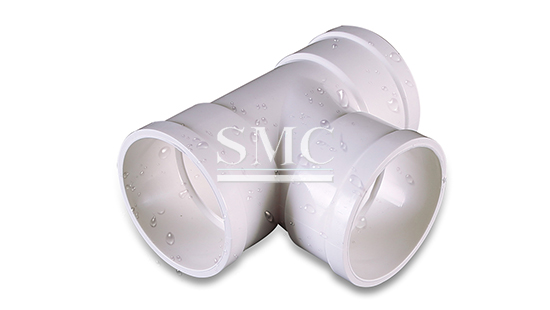

GRE Reinforced Tee
Shanghai Metal Corporation is a professional manufacturer and Glass Reinforced Expoxy Tee with high quality and competitive prices.
Glass Reinforced Epoxy (GRE) Tee is a high-performance composite pipe fitting engineered for demanding industrial applications. Combining epoxy resin with continuous glass fiber reinforcement, this tee fitting offers exceptional mechanical strength, corrosion resistance, and durability in aggressive environments.
If you want to know more about our Glass Reinforced Expoxy Tee or request a price quote, please feel free to contact us. We will respond within 24 hours.
Technical Information of GRE Reinforced Tee:
|
公称直径 |
英寸 (NPS) |
外径 |
壁厚 (mm) |
法兰标准 |
Pressure |
Axial Load轴向载荷 (kN) |
Weight |
Working Temp. |
|
25 |
1" |
33.7 |
3.0-5.0 |
ASME B16.5 |
PN6-PN10 |
12-18 |
0.8-1.5 |
-40~+80 |
|
50 |
2" |
60.3 |
4.0-6.5 |
ISO 7005 |
PN10-PN16 |
25-35 |
2.2-3.8 |
-40~+100 |
|
80 |
3" |
88.9 |
5.0-8.0 |
ASME B16.5 |
PN16 |
40-55 |
4.5-6.2 |
-40~+80 |
|
100 |
4" |
114.3 |
6.0-10.0 |
ISO 7005 |
PN16-PN20 |
60-85 |
7.0-10.5 |
-40~+100 |
|
150 |
6" |
168.3 |
8.0-12.0 |
ASME B16.5 |
PN20-PN25 |
100-140 |
15-22 |
-40~+120 |
|
200 |
8" |
219.1 |
10.0-15.0 |
ISO 7005 |
PN25 |
180-240 |
28-40 |
-40~+80 |
|
300 |
12" |
323.9 |
12.0-18.0 |
ASME B16.5 |
PN25-PN40 |
300-420 |
55-75 |
-40~+120 |
|
400 |
16" |
406.4 |
15.0-20.0 |
ISO 7005 |
PN40 |
500-680 |
90-120 |
-40~+100 |
|
600 |
24" |
609.6 |
20.0-25.0 |
ASME B16.5 |
PN40+ |
800-1100 |
180-250 |
-40~+80 |
|
800 |
32" |
813 |
25.0-30.0 |
Customized |
PN40+ |
1200-1600 |
300-400 |
-40~+60 |
|
1200 |
48" |
1219.2 |
30.0-40.0 |
Customized |
PN40+ |
2500-3500 |
600-850 |
-40~+50 |

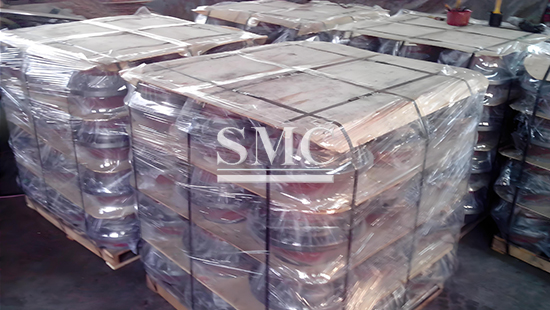

Packaging of GRE Reinforced Tee:
