Molybdenum Bar/ Molybdenum Wire/ Molybdenum Rod
Grade: Mo1, Mo3G(MoLa10)
Standard: GB/T 4182-84，ASTM B387-90
Size: 0.02~2.5mm
Shanghai Metal Corporation is a leading Molybdenum Bar manufacturer and supplier.
The molybdenum rod has a high melting point, good thermal conductivity and low thermal expansion properties. At high temperatures, you can Antioxidant, high strength. Molybdenum rods can be used to make electric vacuum devices and electric light source parts, and can also be used.
As a high temperature heating element, high temperature structural parts, electrodes, etc.
Classified by material
1. Pure molybdenum rod: the molybdenum content is greater than 99.95%.
2. High temperature molybdenum rod (molybdenum tantalum alloy rod): containing ~ 0.4~1.2%, molybdenum content is except for impurities the amount.
3. TZM molybdenum rod: 0.4~0.6Ti, 0.07~0.12Zr, 0.01~0.05C.
If you want to know more about our copper products or Molybdenum Bar price please feel free to contact us, we will reply you within 24 hours.
-
1) Grade: Mo1, Mo3G(MoLa10).
2) Standard: GB/T 4182-84，ASTM B387-90
3) Size: 0.02~2.5mm
-
-
-
1) The molybdenum wire has high precision and the wire diameter tolerance is controlled within 0~-0.002mm;
2) The occurrence rate of disconnection is low, the processing rate is high, and the cost is high;
3) Stable long-term continuous processing is achieved.
-
-
1) Used to manufacture electric vacuum devices and electric light source parts.
2) Suitable for processing ion implantation parts.
3) Used as a high temperature heating element and high temperature structural parts.
4) Used as an electrode in the glass and refractory fiber industry, working in a 1300 ° C glass melt,long life.
5) Used as an electrode in the rare earth industry.
-
1) Hardness
2) Tensile Strength
3) Elongation
4) Metal-Detector
5) Conductivity
6) Chemical Content
-
Chemical Composition of Molybdenum Bar:
|
Grade |
element |
element |
Chemical composition |
|||||
|
Mo |
La2O3 |
C |
O |
N |
Fe |
Ni |
Si |
|
|
Mo1 |
≥99.95 |
—— |
0.01 |
0.007 |
0.002 |
0.01 |
0.005 |
0.01 |
|
MoLa |
less |
0.4~1.2 |
0.01 |
— |
0.002 |
0.01 |
0.002 |
0.01 |
Tecnical Information of Molybdenum Bar:
|
Grade |
State |
O.D（mm） |
200mm Weight（mg） |
200mmTolerance（%） |
O.D TOLERANCE（%） |
||
|
CLASS I |
CLASSⅡ |
CLASSⅠ |
CLASSⅡ |
||||
|
Mo1 MoLa |
Black/white |
0.02≤d≤0.03 |
0.65～1.47 |
±2.5 |
±3 |
— |
— |
|
0.03＜d≤0.04 |
＞1.47～2.61 |
±2.0 |
±3 |
— |
— |
||
|
0.04＜d≤0.1 |
0.04＜d≤0.1 |
±1.5 |
±3 |
— |
— |
||
|
0.1＜d≤0.4 |
0.1＜d≤0.4 |
±1.5 |
±3 |
— |
— |
||
|
0.4＜d≤0.6 |
0.4＜d≤0.6 |
— |
— |
±1.5 |
±2.5 |
||
|
0.6＜d≤2.5 |
0.6＜d≤2.5 |
— |
— |
±1.0 |
±2.0 |
||

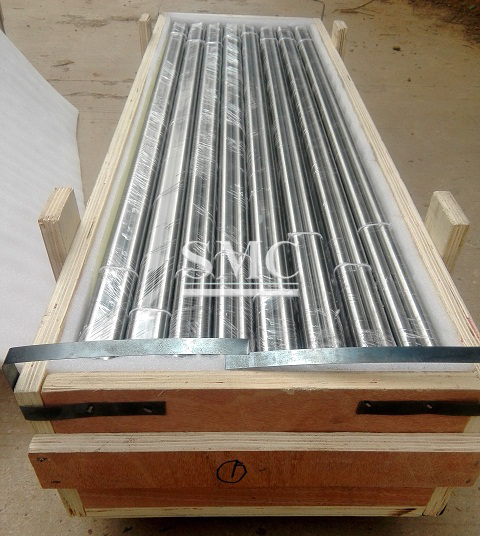

Packaging of Molybdenum Bar:
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
Application of Molybdenum Bar/Molybdenum Wire/ Molybdenum Rod:
1. Used to manufacture electric vacuum devices and electric light source parts.
2. Suitable for processing ion implantation parts.
3 .Used as a high temperature heating element and high temperature structural parts.
4. Used as an electrode in the glass and refractory fiber industry, working in a 1300 ° C glass melt,long life.
5 .Used as an electrode in the rare earth industry.
Advantages of Molybdenum Bar/Molybdenum Wire/ Molybdenum Rod:
1. The molybdenum wire has high precision and the wire diameter tolerance is controlled within 0~-0.002mm;
2. The occurrence rate of disconnection is low, the processing rate is high, and the cost is high;
3. Stable long-term continuous processing is achieved.
The characteristics:
1 Super high tensile strength;
2 High surface finish, good stability and high cutting precision;
3 The elongation is small and the wire is small;
4 The volume of the roll is large, the wire diameter is consistent, the wire is not easy to break, and the life is long;
5 Can increase high frequency power and improve roughing efficiency;
6 Accurate measurement, vacuum packaging, to prevent mildew and can be stored for a long time.
